RS PRO Roller Lever Subminiature Micro Switch, Solder Terminal, 2 A @ 250 V ac, SPST, IP40, Микропереключатель

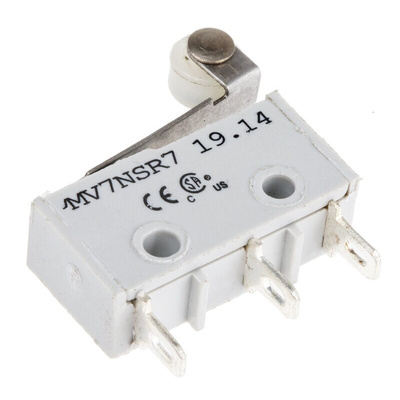

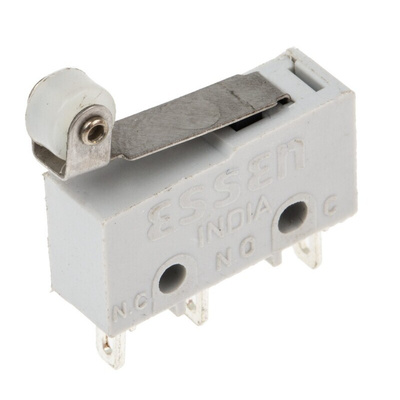

RS PRO 1NO/1NC Miniature Roller Micro Switch (2 A @ 250V ac)

The RS PRO miniature Micro Switch is robust and reliable SPDT (Single Pole Double Throw) roller lever switch. Constructed with a heavy duty moulded glass filled flame retardant case for a hardwearing roller switch suited to applications requiring low operating force.
The RS PRO Micro Switch is built with a snap action 1NO/NC contact arrangement featuring Silver plated Copper terminals. Designed for simple solder termination and easily mounted to a smooth flat surface via 2 x M2 (or #2 UNF) screw holes on the side of the unit.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Lever switch ideal for a wide range of environments and applications.

Features and Benefits

• Miniature micro switch


• Roller actuator


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Glass filled flame retardant housing


• Snap action


• IP40 rated


• Silver contacts


• Silver plated Copper terminals


• Side mounted


• Solder termination


• Total weight of 2.8g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1, U L94V-0

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Sub- Miniature Micro Switches MV7N Series Data Sheet

Sub- Miniature Micro Switches MV7N Series Data Sheet

RS PRO Datasheet
