3200645, Phoenix Contact, AI0.34-12 TQ Insulated Crimp Bootlace Ferrule, 12mm Pin Length, 0.8mm Pin Diameter, 0.34mm² Wire Size,, Наконечники

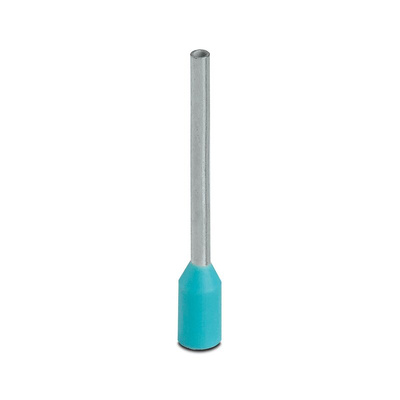

Phoenix Contact Crimp Bootlace Ferrule, 0.8mm Ferrule Diameter, 12mm Sleeve Length - AI 0,34-12 TQ - 3200645

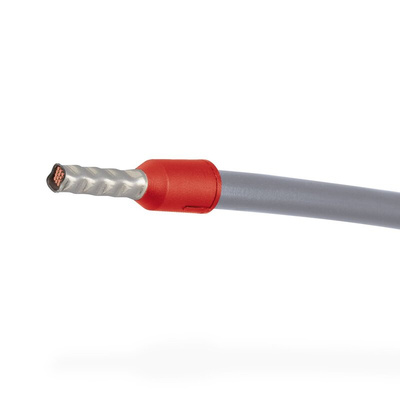

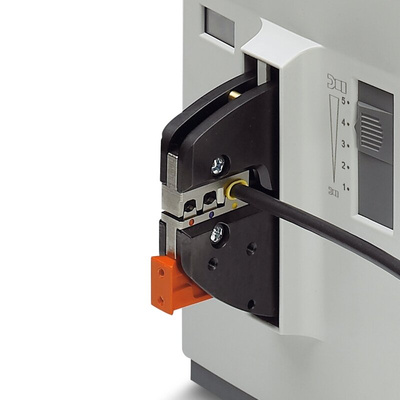

Get connections done in a flash with this crimp bootlace ferrule from Phoenix Contact. When popped on a cable, it creates a secure connection that's ideal for wiring into screw or spring clamps. The ferrule is a breeze to attach. After stripping the insulation by 14mm, you just thread the wire strands into the ferrule's collar, then place it into your crimper and squeeze the handles firmly. As the collar's made of soft tin-plated electrolytic copper, making the crimp calls for minimal force.
This versatile component is compatible with wire gauges up to 22AWG, so it's widely compatible. The bright turquoise plastic sleeve makes it ideal for colour-coding wires. Ferrules like this one are commonly used in applications including control units and switching cabinets.

Features & Benefits

• Free from halogens to prevent toxic or corrosive emissions in the event of a fire
• Tin plating is corrosion-resistant, so it holds up in humid environments
• Light weight of 0.08g means it won't place strain on your system
• Phosphorus deoxidised copper type is highly conductive
• Permanent ambient temperature rating of +105°C means you can use it in harsh conditions

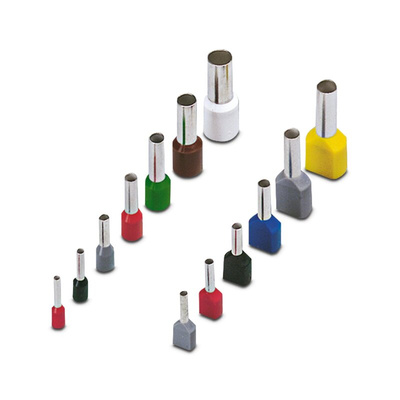

Phoenix Contact Bootlace Ferrules

Ferrule - AI 0,34-12 TQ
