3202960, Phoenix Contact Assortment Box Ferrule Crimp terminal Kit, Наконечники

Phoenix Contact Crimp Terminal Kit, 5 Ferrule Sizes, 50 Pieces Per Type - AI SORTI BOX RD - 3202960

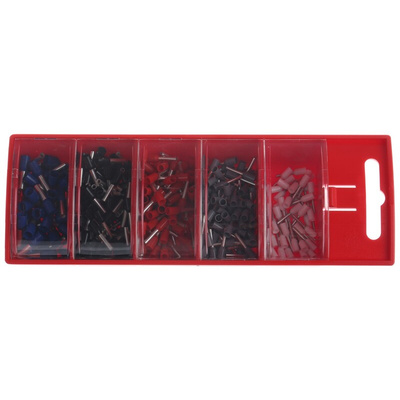

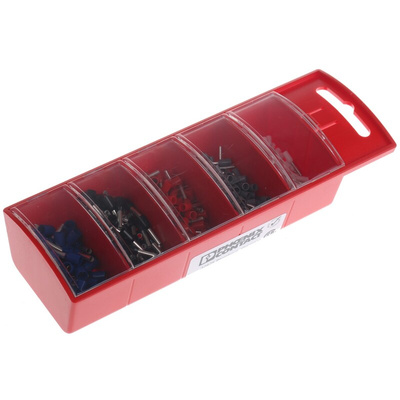

Keen to neatly seal off wire ends? Get this crimp terminal kit from Phoenix Contact to make your job a breeze. There are five sizes of single-conductor ferrule from 20 to 14AWG and 50 pieces per size. They're stored neatly in a sectioned plastic case, which is ideal to include in your general-purpose electrical repair kit.
Thanks to the tin-plated CU-DHP contacts, you can rest easy knowing these are high-performing, corrosion-resistant parts. The colour-coded plastic collars protect you and any connected equipment from electric shocks, which boosts workplace safety. They're UL 94-V0 HB rated too, indicating that they self-extinguish in less than 10 seconds to prevent the spread of fire.

Features & Benefits

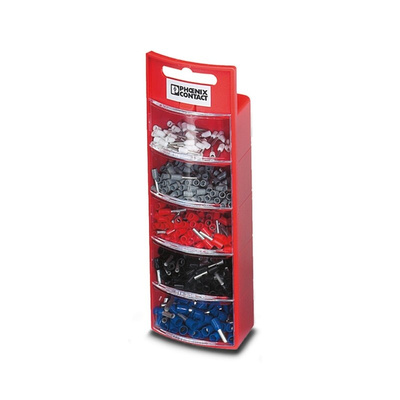

• Hanging hole on one end of the box allows for wall-mounting
• Clear slide-on cover makes it easy to pick out exactly which terminal you need

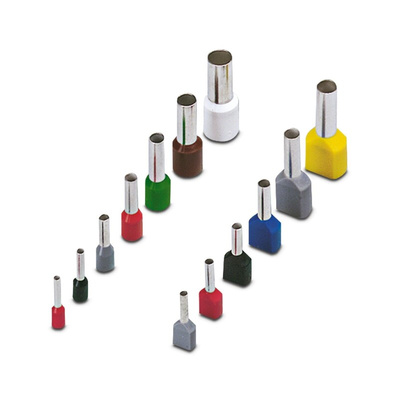

• Colour-coded collars speed up in-field jobs – white, grey, red, black and blue collars let you identify the size you need at a glance
• Terminals handle up to +120°C of short-term temperature, +105°C of permanent temperature and as low as -40°C without load, so are tough enough for harsh settings

Phoenix Contact Bootlace Ferrules

Datasheet 3202960
