KVR16LS11/8, Kingston 8 GB DDR3L Laptop RAM, 1600MHz, SODIMM, 1.35V

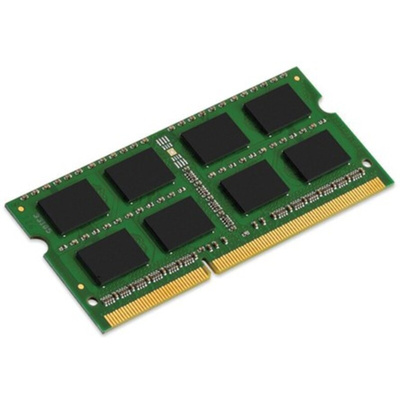

Kingston Small-Outline Dual Inline Memory Module

The Kingston small-outline dual inline memory module(SODIMM) has DDR3L memory class and 8GB memory capacity. It is a 204- pin module that can reach a speed of 1600MHz. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers.

Features and Benefits

8-bit pre-fetch
Asynchronous reset
Average refresh period is 7.8us at lower than TCASE 85°C and 3.9us at 85°C < TCASE < 95°C
Bi-directional differential data strobe
Burst length is 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
Eight independent internal bank
fCK of 800MHz for 1600Mb/sec/pin
Internal self-calibration through ZQ pin (RZQ : 240 ohm ± 1%)
JEDEC standard 1.35V (1.28V ∼ 1.45V) and 1.5V (1.425V ∼ 1.575V) power supply VDDQ = 1.35V (1.28V ∼ 1.45V) and 1.5V (1.425V ∼ 1.575V)
On die termination using ODT pin
PCB Height is 1.18in (30mm) with double sided component

Certifications

UL approved

KVR16LS11/8 Memory Module Data Sheet
