E2A-S08KS02-WP-C1 5M, Omron E2A-S Series Inductive Barrel-Style Proximity Sensor, M8 x 1, 2 mm Detection, NPN Output, 12 → 24 V dc,, Индуктивный датчик приближения

8049230
Номер производителя: E2A-S08KS02-WP-C1 5MПроизводитель: Omron
Цена за шт.
21801.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

E2A Standard CENELEC Length Stainless Steel

PBTP sensing face material
LED indication
Operating temperature range -25 to +70°C
Supply voltage 10 to 35Vdc
Current consumption 15mA
Maximum switching current 200mA
Short circuit and reverse polarity protection

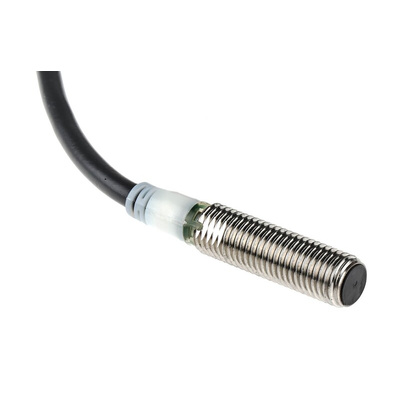

Omron E2A-S Proximity Sensor, Barrel Style, NPN Output - E2A-S08KS02-WP-C1 5M

This is a stainless steel, short-body inductive proximity sensor with an M8 size. Designed for standard industrial environments, this shielded sensor operates on a DC 3-wire system with a PNP Normally Open (NO) output. Its sensing distance of 2 mm allows precise proximity sensing. The sensor comes prewired with a 5-metre cable and is resistant to heat, chemicals, and water. Its compact design makes it suitable for various applications.

Features & Benefits

• Offers a sensing distance approximately 1.5 to 2 times larger than conventional Omron sensors. This ensures reliable detection even in demanding applications
• With its increased sensing range, workpiece collisions are minimised, enhancing safety and preventing damage
• The sensor’s modular design simplifies customization, allowing seamless integration into various setups

Applications

• It is ideal for use in automated machinery, conveyor systems, and production lines
• It can detect objects in material handling equipment, such as packaging machines and robotic arms
• The stainless steel housing makes it suitable for food and beverage processing environments
• Use it for part presence detection, positioning, and quality control in automotive assembly lines

Can this sensor withstand harsh environments?

Yes, the E2A-S08KS02-WP-C1 5M is specifically designed for harsh conditions, including vibration and extreme temperatures.

What output mode does it have?

It has a 3-wire NPN-NO output, which means it provides a signal when an object is detected.

Can I mount it in tight spaces?

Yes, the short body design allows installation in confined areas.

Is it suitable for wet environments?

Yes, the sensor has an IP67/IP69K degree of protection, making it resistant to water and dust.

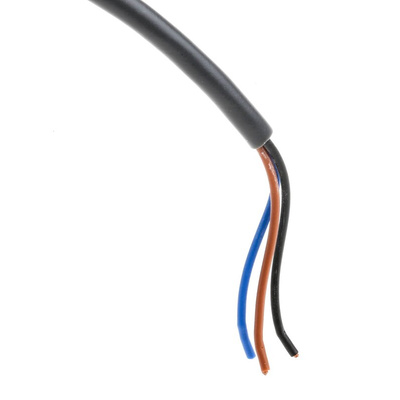

What is the prewired cable length?

The E2A-S08KS02-WP-C1 5M comes with a 2-metre prewired cable for convenient installation

Техническая спецификация
pdfDatasheet
Вид корпуса:
Бочковидный
Встречающиеся стандарты:
CE
Диапазон обнаружения:
2 мм
Длина:
27мм
Защита от обратной полярности:
Да
Коммутируемый ток:
200 мА
Максимальная частота переключений:
1.5кГц
Максимальное напряжение постоянного тока:
32В
Материал корпуса:
Нержавеющая сталь
Напряжение питания:
12 → 24 В пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Размер резьбы:
M8 x 1
Серия:
E2A-S
Степень защиты IP:
IP67
Технология датчика:
Индуктивный
Тип выхода:
NPN
Тип клеммы:
Кабель
Тип монтажа:
Заподлицо
Экранирование:
Экранированный
