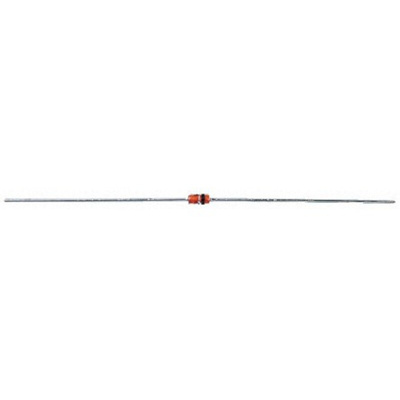

1N5236BTR, onsemi, 7.5V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35, Стабилитрон

Zener Diodes 500mW, 1N52 Series, Fairchild Semiconductor

1N5236B: Zener 7.5V 0.5W 5%

General Data Applicable to all series in this group.
500 Milliwatt
Hermetically Sealed
Glass Silicon Zener Diodes
Complete Voltage Range - 1.8 to 200 Volts
DO-204AH Package - Smaller than Conventional DO-204AA Package
Double Slug Type Construction
Metallurgically Bonded Construction
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16", from case for 10 seconds
FINISH: All external surfaces are corrosion resistant with readily solderable leads
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WAFER FAB LOCATION: Phoenix, Arizona
ASSEMBLY/TEST LOCATION: Seoul, Korea

Zener Diodes, Fairchild Semiconductor

1N5221B - 1N5263B, Zener Diodes Data Sheet
