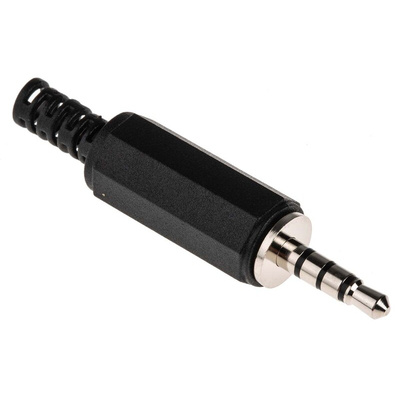

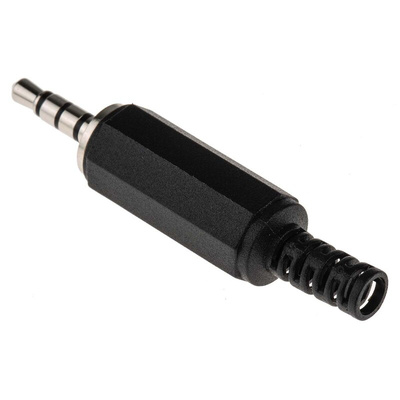

RS PRO Jack Connector 3.5 mm Cable Mount Composite Video Plug, 4Pole

RS PRO 4 Pole Composite Jack Plug

An insulated 4 pole jack plug suitable for audio and video purposes featuring a 3.5mm connection.
4 Pole jacks are used in audio and visual applications including connecting peripherals such as camcorders and entertainment equipment to television monitors. They are also capable of carrying a mic channel, and are frequently used in headsets.
The connector features a moulded strain relief that prevents wear-and-tear on the connector caused by tugging and bending of the connecting wire and its ergonomic hexagonal shape makes it easy to handle.
A hardwearing 3.5mm jack plug suitable for a wide variety of applications for both professional and domestic environments.

Features and Benefits

4 Pole composite jack
3.5mm connector
Ergonomic shape
Integrated strain relief
Silver plating for excellent conductivity
PBT insulator

Applications

4 Pole composite jack plugs differ from 3 Pole jack plugs in that they feature an extra channel that can be used for applications including video or microphone, as well as stereo audio signals. This means they are an ideal all in one connector for audio-visual applications, and are commonly found in;

Smartphone aux sockets
Headsets and headphones
Digital camcorders
Television and media peripherals

Suitable RS PRO Jack Sockets

805-1668 3.5mm Composite Video Socket (11.5mm)
805-1565 3.5mm Composite Video Socket (12.6mm)
805-1659 3.5mm Composite Video Socket (15.7mm)
805-1668 3.5mm Composite Video Socket (15.7mm)

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
