RS PRO Right Angle Rated At 5A, 12 V dc, PCB Mount, Silver

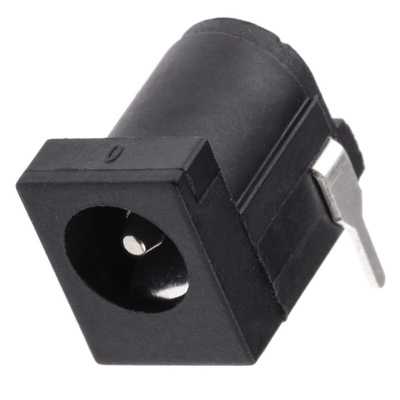

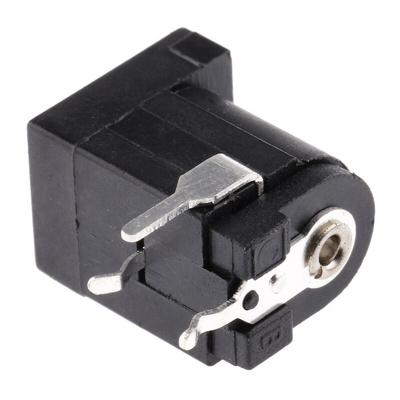

RS PRO 2.1 mm, 2.5 mm PCB Mounting Dual DC Jack Socket 5 A

This RS PRO dual direct current (DC) jack socket is a fixed electrical outlet for DC plugs. You can use it to relay power to your devices such as audio equipment.
The polybutylene terephthalate (PBT) housing material is strong and won't easily break to expose wiring or inserted plugs. You can be assured that the casing is a good insulator and will protect you against electrical shocks. The right-angled mounting ensures more secure connections which means your inserted plugs won't easily come loose. Tin-plated copper alloy contacts are corrosion-resistant and won't easily rust so you can be sure of a reliable and uninterrupted power supply.
This product complies with the Restriction of Hazardous Substances (RoHS) standards so contains only minimal amounts of any hazardous substances. Use this socket in your workshop, garage and home.

Features and Benefits

• Right angle body orientation
• Black colour
• Beryllium copper, brass and phosphor bronze contact material
• Silver contact plating
• Current rating of 5 A
• Female gender
• Glassfibre-reinforced polybutylene terephthalate (PBT) housing material
• Printed circuit board (PCB) mounting type
• Size of 2.1 mm and 2.5 mm
• Solder termination method
• Dual DC type
• Voltage rating of 12 V DC

RS PRO Drawing
