Fluke 750P09 Pressure Module, For Use With 725, 726, 750 Series 1500psi, Калибратор давления

Fluke 750P Series Pressure Modules

The pressure modules in the Fluke 750P Series enable gauge or differential or absolute pressure measurement with Fluke 750 and 740 series documenting process calibrators (DPCs) or with Fluke 725 and 726 multifunction process calibrators (MPCs). Modules can be selected to cover pressure calibrations ranging from 0 to 1 in H₂0 to 10,000 psi (2.5 mBar to 690 bar. Gauge pressure modules have one pressure fitting and measure the pressure with respect to atmospheric pressure. Differential pressure modules have two pressure fittings and measure the difference between the applied pressure on the high fitting versus the low fitting. Each module is clearly labelled for range, overpressure and media compatibility. All modules include NPT, metric (BSP) and M20 adapters.

0.025% reference uncertainty
6-month and 1-year specifications
Temperature compensated 0°C to 50°C
Digital communication to calibrators, no analog losses or errors
Broad selection of ranges
Gauge, differential, dual range, absolute and vacuum measurement models
Urethane overmoulding protection

Supplied with

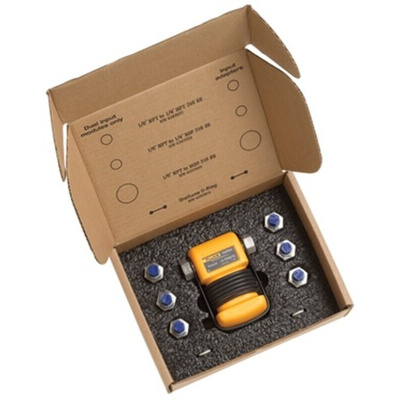

Manual, traceable calibration certificate, adapters

FLUKE Pressure Module, 0 to 1500psi Pressure Measurement Range

Features & Benefits

• Wide operating temperature range of 0°C to +50°C for use in demanding environments
• Low reference uncertainty of +0.0175% to ensure highly accurate results

Applications

• Industrial automation
• HVAC systems
• Medical equipment

Which calibrators does this unit work with?

This pressure module is compatible with multifunction calibrators in the 725, 726, 740 and 750 ranges, so it's a versatile piece of kit.

What pressure range can this unit measure?

This unit has a wide pressure measurement range of 0 to 1500psi, so it's a handy pice of kit for use with both low-pressure and high-pressure applications.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Fluke 750P Series Pressure Modules Data Sheet

Fluke 750P/750R Series Pressure Modules Instruction Sheet
