RS PRO 35VA DIN Rail Transformer, IEC 61558-2-6, 230V ac Primary, 24V ac Secondary, Трансформатор

RS PRO 35 VA DIN Rail Transformer, 230 V AC Primary 1 x, 24 V AC Secondary

This DIN rail transformer from RS PRO works with continuous electrical loads to prevent short-circuiting and overloading. Designed to DIN standards (Deutsches Institut für Normung, or the German Institute of Standardisation), it has also been electrical and flash tested for an extra level of safety. It provides additional protection against electrical shock.

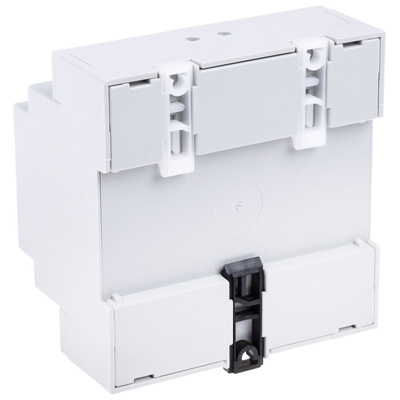

The transformer comes with pre-drilled screw holes for easy mounting onto a standard 35 mm (TS35) DIN rail. The plastic casing is IP20 rated for basic dust protection and is safe to touch. It's not waterproof though, so it's best for indoor settings.

These kinds of transformers are typically used in connection with internal building jobs, as well as in factories and workshops, for example for heating and temporary lighting.

Part of the tried and trusted RS PRO range, this product has undergone extensive quality controls for safety and durability.

Features and Benefits

• DIN rail transformer
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 24 V AC
• Power rating of 35 VA
• Mounted by DIN rail
• Single output
• Dimensions: 88 mm (W) x 58 mm (D) x 90 mm (L)
• Operating frequency range of 50 Hz to 60 Hz
• Maximum temperature of +130°C
• Weight of 900 g
• 100% electrical and flash tested for safety
• IP20 rated as safe to touch with fingers
• RoHS compliant for restricted hazardous substances
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
