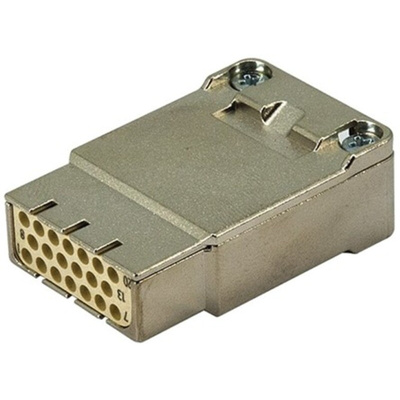

09140203113, HARTING Heavy Duty Power Connector Insert, 4A, Female, Han-Modular Series, 20 Contacts

Han Shielded Module

Han Shielded Modules in male and female format, suitable for the transmission of very sensitive signals such as bus signals, 20 way plus shield.

Operating temperature range -40 to +125°C
Over 500 mating cycles
Rated at 4A, 32V
Cable diameter 4-12mm

Approvals

DIN EN 60 664-1, DIN EN 61 984

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han Shielded module
