172877 P1-25/M4/SVB/N, Eaton 3P+N Pole Panel Mount Isolator Switch - 25A Maximum Current, 11kW Power Rating, IP65

Eaton Isolator Switch, 150A Switch Rating, Screw Terminal Type - P1 Series - 172877 P1-25/M4/SVB/N

Securely shut down electrical components in a flash with this isolator switch from Eaton. It comes as part of a three-part package with a metal extension shaft and lockable ring. When you turn the handle, the unit cuts the power immediately to enable safe access. By limiting the shutdown to limited parts of your process, it minimises costly downtime, improving operational efficiency. You can find this type of isolator switch in packaging and industrial automation facilities. A maximum operating voltage of 690V AC means it's safe to use with high-powered systems.

Features & Benefits

• 3-pole-plus-neutral design so you can monitor and isolate multiple circuits at once
• IP65 rating indicates protection against low-pressure water jets and dust
• Performs reliably in harsh conditions in an operating temperature range between -25°C and +50°C
• Overvoltage category III, meaning it can withstand surges up to 6000V AC

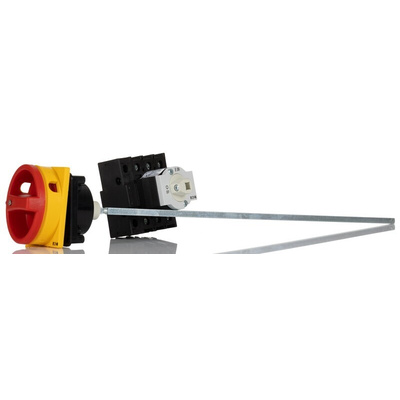

What's the useable length of the metal extension shaft?

The extension shaft lets you mount your P1 switch in an electrical cabinet up to 400mm deep.

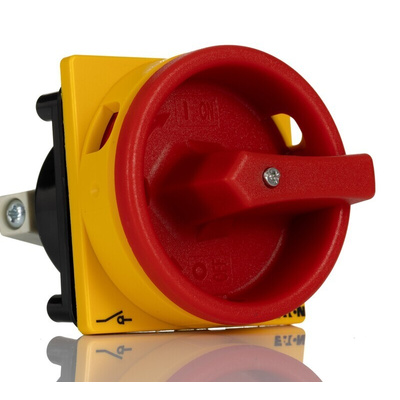

Can I lock this isolator switch?

Yes, for added security you can fit a padlock on the unit.

Note

Eaton formerly known as Moeller
