172867 & P1-32/M4/SVB/N, Eaton 3 + N Pole Panel Mount Non Fused Isolator Switch - 32 A Maximum Current, 18.5 kW Power Rating, IP65

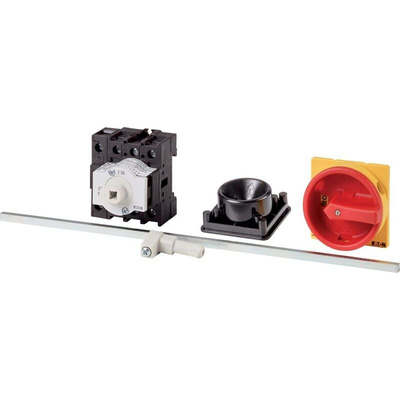

P1 Series Isolators With Metal Extension Shafts

The Eaton P1 series of switch-disconnectors with metal extension shafts are compact and robust, ideal for hard-wearing industrial environments, with a rated uninterrupted current of up to 32 Amps.

Features and Benefits

• Featuring extension shafts, the Eaton P1 switches can be mounted in electrical cabinets of up to 600mm deep, and offer a solution in many different applications due to the variety of handle and shaft options available.
• The Eaton P1 range of switch-disconnectors offers high performance and reliability paired with low power losses.
• Performs local isolation, manual override & safety switch functions.
• Switch-disconnectors have rated uninterrupted current from 13 - 32 A.
• Shaft is metal to increase the robustness and durability of devices.

Uses and Applications

This range of isolator switches from Eaton is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. This form of local isolation is most commonly needed for the repair and maintenance of electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches. Potential use in machine control panels.
