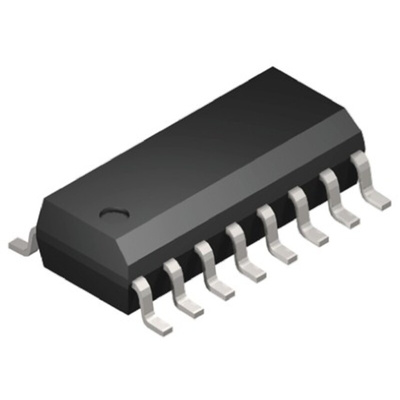

MC74HC4094ADR2G, onsemi MC74HC4094ADG 8-stage Surface Mount Shift Register/Latch MC74, 16-Pin SOIC

74HC Family, ON Semiconductor

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

The MC74HC4094A is a high speed CMOS 8-bit serial shift and Storage register. This device consists of an 8-bit shift register and latch with 3-stage output buffers. Data is shifted on positive clock (CP) transistions. The data is the shift register is transferred to the storage register when the Strobe (STR) input is high. The output buffers are enabled when the Output Enable (OE) input is set high. Tow serial outputs (QS1, QS2) are available for cascading multiple devices.

Wide Operating Voltage Range: 2.0 to 6.0 V
Low Power Dissipation: ICC = < 10 A

These are PbFree Devices
Applications
SerialtoParallel Conversion
Remote Control Storage Register
