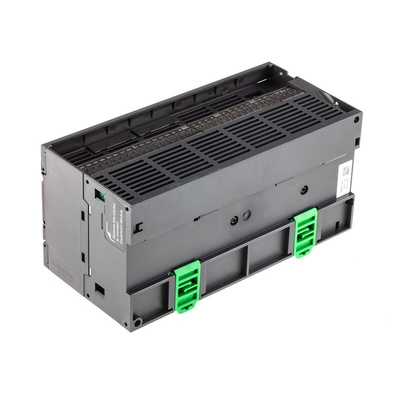

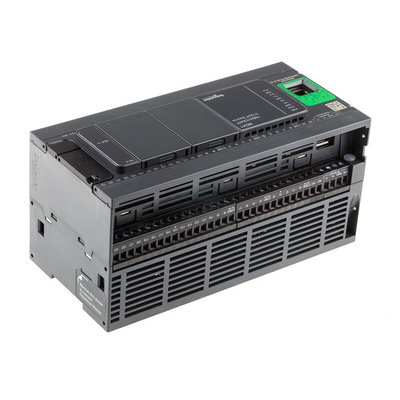

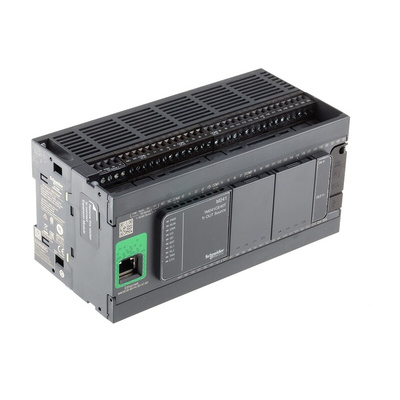

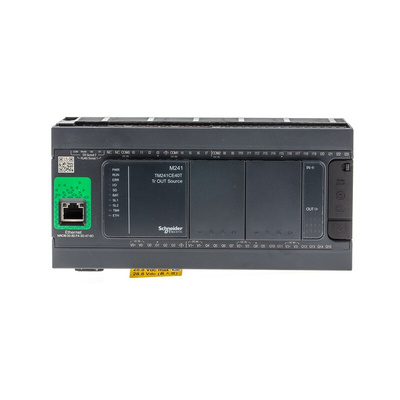

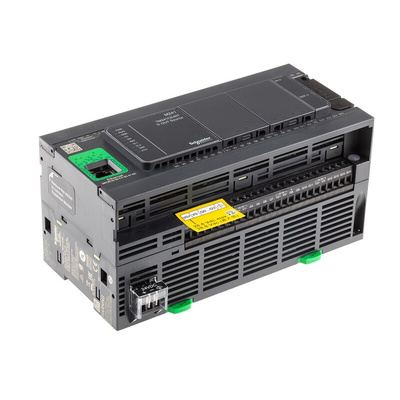

TM241CE40T, Schneider Electric Modicon M241 Series PLC CPU, Transistor Output, 24-Input, ПЛК

Schneider Electric Logic Controllers - Modicon M241 Range

The Modicon M241 logic controller is for application for controlling of simple motion control machines and offers best-in-class communication with 5 embedded ports. It offers you state of the art technical features and embedded CANopen for fieldbus architectures up to 63 devices while reducing your installation time and cost. Get unlimited access to your machine via Ethernet - everywhere and any time and simplify maintenance with any mobile device through visualization pages designed directly inside SoMachine and stored in the PLC’s web server.

• 5 ports: Ethernet, CANopen, 2 serial lines, USB port for programming
• High processing CPU and cartridge extensions
• Web and FTP server
• Pulse train outputs / high-speed counters
• SD card
• Safety function
• Programming with SoMachineBasic software
• All programming, visualization, and commissioning are handled in just one intuitive tool

Additional modules for this controller are:

• TeSys SoLink motor starter
• Extensive line of analog and digital modules
• Ethernet and Profibus

Schneider Electric Modicon M221 Controller - Transistor PNP Ethernet - TM241CE40T

• Features a rated supply voltage of 24 V DC
• The discrete input number is 24, discrete input 8 fast input conforming to IEC 61131-2 Type 1
• Transistor discrete output type
• 16 transistors, 4 fast output
• Output voltage is 24 V DC for transistor output and the output current is 0.1 A for fast output (PTO mode) (Q0...Q3), 0.5 A for transistor output (Q0...Q15)

Schneider Electric Modicon M241

The Modicon M241 logic controller is a MachineStruxure controller. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.

Modicon M241 Logic Controllers
