TM221CE40R, Schneider Electric Modicon M221 Series PLC CPU, 100 to 240 V ac Supply, Digital Output, 24-Input, Discrete Input, ПЛК

Schneider Electric Logic Controllers - Modicon M221 Range

The Modicon M221 logic controller is for application for controlling of simple machines and offers best-in-class performance. It requires minimal installation and offers tremendous versatility. Connect a simple remote operator panel for instant maintenance and machine visualization.

• SD card slot and USB port
• 2 analog inputs and a broad choice of I/O’s
• Run/stop switch and cartridge extension
• Ethernet and serial line ports
• Programming with SoMachineBasic software
• Simple navigation delivers a more efficient engineering process
• All programming, visualization, and commissioning are handled in just one intuitive tool

Additional modules for this controller are:

• Safety module
• TeSys SoLink motor starter
• Extensive line of analog and digital modules
• Lexium servo drives

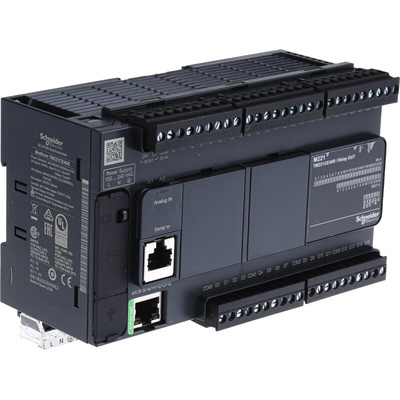

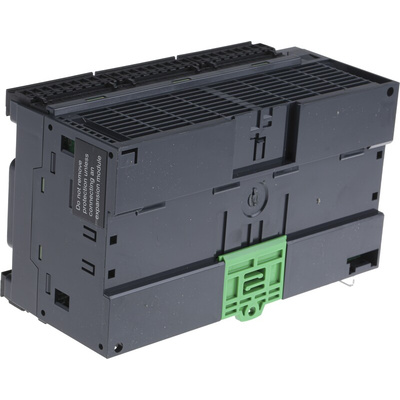

TM221CE40R Modicon M221 Logic Controller.

• [Us] rated supply voltage 100 to 240 V ac.


• Discrete input number 24, discrete input conforming to IEC 61131-2 Type 1.


• Analogue input number 2 at 0 to 10 V.


• Relay is normally open (discrete output).


• Discrete output number 16 relay.


• Output 2 A.


• Discrete I/O number 40.


• Maximum number of I/O expansion module 7 for relay output.


• Network frequency 50/60 Hz.


• Inrush current 40 A.


• Discrete input logic Sink or source (positive/negative).


• Analogue input resolution 10 bits.


• LSB value 10 mV.


• Mechanical durability 20000000 Cycles for relay output.


• Memory capacity 256 kB for user application and data RAM with 10000 instructions, 256 kB for internal variables RAM.


• Data backed up 256 kB built-in flash memory for backup of application and data.


• BR2032 lithium non-rechargeable, battery life: 4 year(s)


• Control signal type Single phase, A/B, Pulse/Direction.


• Integrated connection type USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface, Ethernet with RJ45 connector.


• Communication port protocol USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet.

Local Signalling.

• 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED per channel (green) for I/O state, 1 LED (green) for SL, Ethernet network activity (green) for ACT, Ethernet network link (yellow) for Link (Link Status).

Electrical Connection.

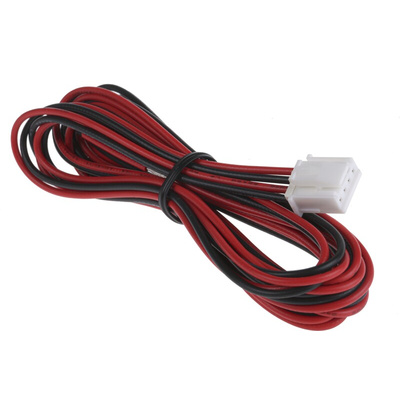

• Removable screw terminal block for inputs, Removable screw terminal block for outputs, Terminal block, 3 terminal(s) for connecting the 24 V DC power supply, Connector, 4 terminal(s) for analogue inputs Mini B USB 2.0 connector for a programming terminal

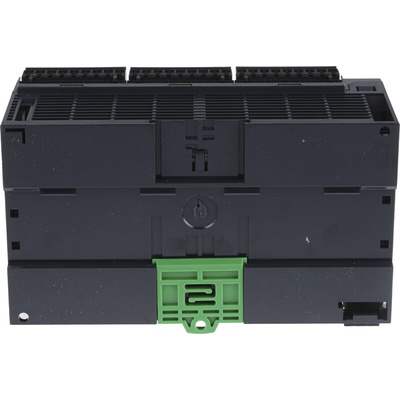

Mounting.

• Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate, or panel with fixing kit.

Standards

EN/IEC 60664-1, EN/IEC 61131-2, EN/IEC 61010-2-201

Certificate No.
type":"Certificate No.",

DNV-GL, EAC, ABS, CULus, LR, RCM, CSA, IACS E10

Schneider Electric Modicon M221

The Modicon M221 logic controller is a MachineStruxure controller. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
