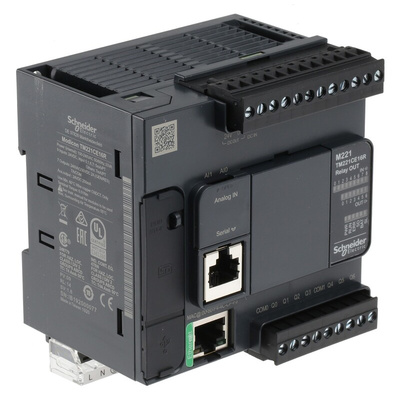

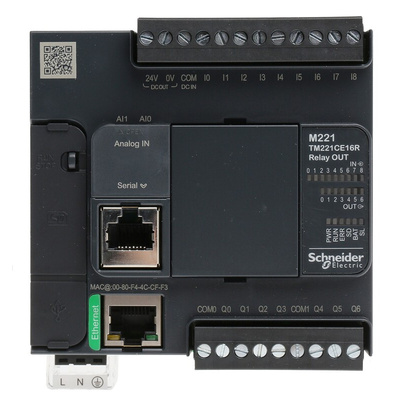

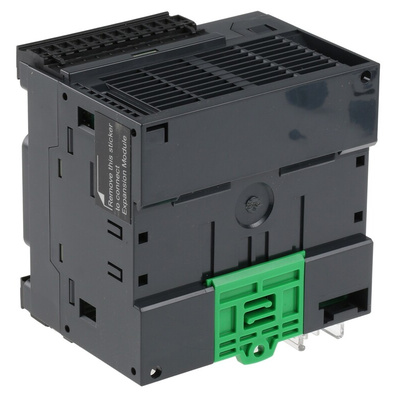

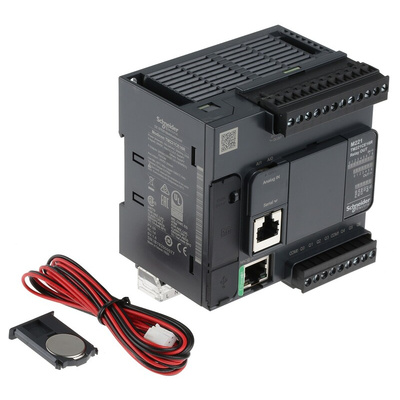

TM221CE16R, Schneider Electric Modicon M221 Series PLC CPU, 240 V Supply, Digital Output, 9-Input, Discrete Input, ПЛК

Schneider Electric Logic Controllers - Modicon M221 Range

The Modicon M221 logic controller is for application for controlling of simple machines and offers best-in-class performance. It requires minimal installation and offers tremendous versatility. Connect a simple remote operator panel for instant maintenance and machine visualization.

• SD card slot and USB port
• 2 analog inputs and a broad choice of I/O’s
• Run/stop switch and cartridge extension
• Ethernet and serial line ports
• Programming with SoMachineBasic software
• Simple navigation delivers a more efficient engineering process
• All programming, visualization, and commissioning are handled in just one intuitive tool

Additional modules for this controller are:

• Safety module
• TeSys SoLink motor starter
• Extensive line of analog and digital modules
• Lexium servo drives

Schneider Electric PLC CPU, 2A Output Current, 1s Reset Time - Modicon M221 Series - TM221CE16R

Take charge of your industrial equipment with this PLC CPU from Schneider Electric. It has nine discrete input channels and seven relay output channels that allow you to monitor and automate machine processes to keep everything ticking over smoothly. USB and Ethernet ports make connections easy and let you transmit data smoothly between linked devices. Thanks to a built-in flash memory of 256KB and an external SD card memory capacity of 2GB, you can constantly back up your data log for future reference. A reset time of 1s means this unit recovers swiftly from faults to minimise system downtime.

Features & Benefits

• RS232 and RS485 interfaces let you connect to legacy devices, reducing hardware waste
• Can be mounted on a panel or a DIN rail for versatile installation
• Compact dimensions of 90 (H) x 95 (W) x 70mm (D) to fit into setups with limited space
• LED indicators for efficient monitoring, troubleshooting and diagnosis

Applications

• Waste treatment plants
• Manufacturing industry
• Petrochemical refineries

What programming language does this component use?

This device can be programmed using SoMachineBasic software, making it easy to integrate with compatible components.

Schneider Electric Modicon M221

The Modicon M221 logic controller is a MachineStruxure controller. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.

Modicon TM2 - Compatibility List

Find out more on DESIGNSPARK

RS OUR OFFER - Modicon M221

TM221CE16R Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

UN38.3 Lithium Battery Test Summary

Green Premium ecolable

Product Environmental Profile

Instruction Sheet - TM221CE16R
