TMC4AQ2, Schneider Electric TM3 Series PLC I/O Module for Use with Modicon M241, Analogue, Модуль

Modicon M241 - Optional Cartridges for Logic Controller

The Modicon M241 logic controller is for application for controlling of simple motion control machines and offers best-in-class communication with 5 embedded ports. It offers you state of the art technical features and embedded CANopen for fieldbus architectures up to 63 devices while reducing your installation time and cost. Get unlimited access to your machine via Ethernet - everywhere and any time and simplify maintenance with any mobile device through visualization pages designed directly inside SoMachine and stored in the PLC’s web server.

Cartridges for M241 logic controller
Up to 2 cartridges (depending on controller model) can be inserted without increasing its dimensions
Two different types of cartridges are available:
- Analog I/O cartridges
- Application cartridges

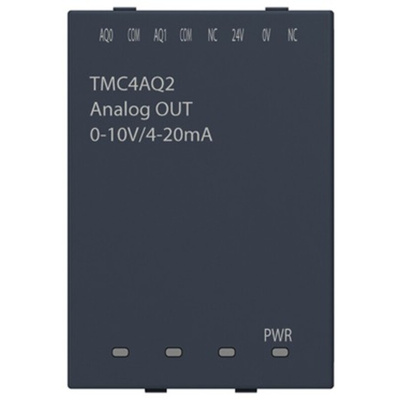

Schneider Electric PLC I/O Module, 16 Bit Resolution, 2 Analogue Outputs - TM3 Series - TMC4AQ2

Extend the output capability of your control device using this PLC I/O module from Schneider Electric. It links a controller (such as 806-6803) to analogue equipment, so you can send instructions across your system for handy machine management. With its push-in installation style, mounting the cartridge takes no time. Space for two analogue outputs means it can manage multiple appliances at once. Thanks to the module's ±0.5% repeat accuracy, you can count on the precise signal conversion needed for reliable control.

Features & Benefits

• Base conversion time of 10ms means it quickly interprets instructions for efficient signalling
• LED power indicator to clearly show output status at a glance
• Supports standard 4 to 20mA and 0 to 10V signal formats so it's compatible with commonly used hardware
• Robust plastic casing means it stands up to bumps, scrapes and heavy handling

Applications

• HVAC systems
• Logistics industry
• Process control

How does resolution affect my signalling system?

Resolution measures how many bits of data a device sends at a time. With more bits, a device, such as this 16-bit option, carries more information in its readings to provide connected equipment with detailed signals.

Schneider Electric Modicon M241

The Modicon M241 logic controller is a MachineStruxure controller. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.

Modicon M241 Logic Controllers
