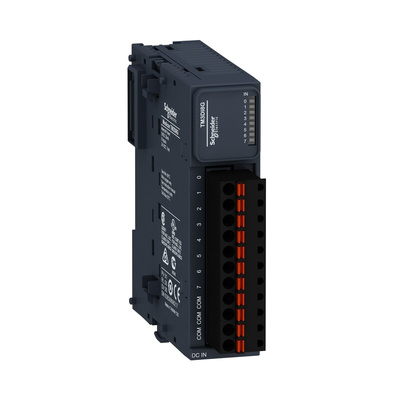

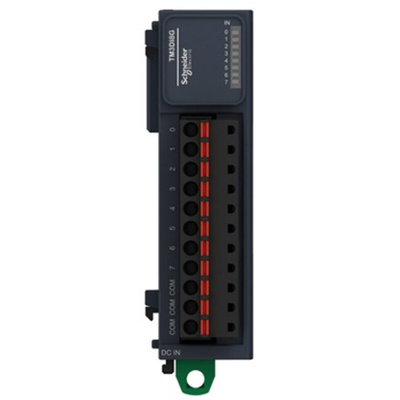

TM3DI8G, Schneider Electric TM3 Series PLC I/O Module for Use with Modicon M221, Modicon M241, Modicon M251, Модуль

Schneider Electric Digital Input Module For Use With Modicon M221/M241/M251 Series, 8 Inputs, 24V DC Voltage Rating - TM3 Series - TM3DI8G

Transmit operating signals from an industrial field device to a PLC using this digital input module from Schneider Electric. Its fast response time of 4ms allows for rapid signal transmission and it has eight inputs so you can use it for multiple different monitoring functions. Robust spring terminals let you connect this module to an electrical source without the need for any tools. This component is compatible with PLCs from the Modicon M221, M241 and M251 ranges, so it's a versatile choice.

Features & Benefits

• LED signals for easy status configuration
• IP20 rating means it's touch-proof and protected from objects over 12mm in size
• DIN rail mounting for quick installation
• Resistant to electrostatic discharge and electromagnetic fields to prevent signal interference

Applications

• Manufacturing industry
• Automotive industry
• Mining and quarrying industry
• Automated systems

How safe is this module?

This module can withstand current surges to enhance workplace safety and prevent damage to your circuits in the event of an electrical malfunction. It's also resistant to shock and vibration for safe use in industrial settings.

Schneider Electric Modicon TM3

The Modicon TM3 is a MachineStruxure I/O system. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
The Modicon TM3 expansion module offer provides an opportunity to enhance the capabilities of Modicon M221, M241 and M251 logic controllers.
In addition, the TM3 expansion system is flexible due to the possibility of remotely locating some of the TM3 modules in the enclosure or another cabinet (up to 5 meters away, using a bus expansion system.
