TM3DM24R, Schneider Electric TM3 Series PLC I/O Module for Use with Modicon M221, Modicon M241, Modicon M251, Discrete, Relay, Модуль

Modicon TM3 - Digital Mixed I/O Modules

Digital mixed I/O modules for Modicon M221, M241 and M251 logic controllers

Modicon TM3 digital mixed I/O modules
Types with different numbers of digital outputs
Output types with relay available
Terminal block with screw or spring connectors

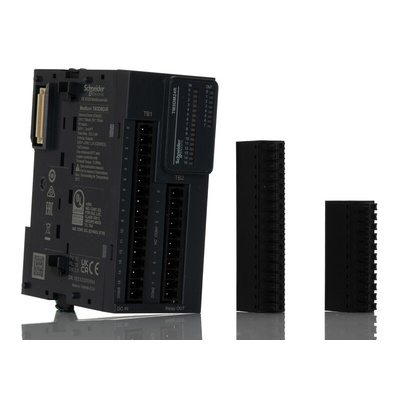

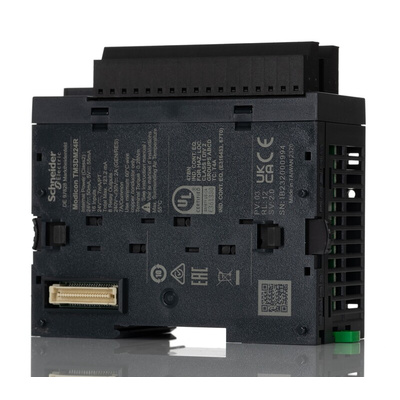

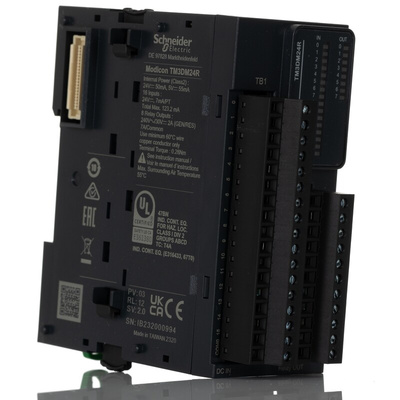

Schneider Electric PLC I/O Module, 16 Digital Inputs, 8 Digital Outputs - TM3 Series - TM3DM24R

Looking to boost your control device's connectivity? Choose this PLC I/O module from Schneider Electric. With 16 inputs and 8 outputs, it links lots of extra devices to its system for easy expansion. By responding to signals in 4ms, the component converts sensor readings in a flash to fly through demanding control tasks. Installation is a breeze, thanks to its compatibility with tool-free rail mounting. As the module comes with LED signalling, you can check the status of its connections at a glance.

Features & Benefits

• Labelled terminals make it easy to identify connections
• Mechanical lifespan of 20 million cycles for reliable long-term use
• Compact dimensions of 42.9 (W) x 90 (H) x 84.6mm (D) so it slots easily onto tightly packed rails
• Sends signals over unshielded cables up to 30m long for reliability in larger setups

Applications

• Water treatment facilities
• Power generators
• Plastic processing

Why should I use relay outputs in my control setup?

Relay outputs like the ones on this module close their circuits with moving mechanical parts. This means they safely handle large loads by providing effective isolation between a PLC and equipment.

Schneider Electric Modicon TM3

The Modicon TM3 is a MachineStruxure I/O system. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
The Modicon TM3 expansion module offer provides an opportunity to enhance the capabilities of Modicon M221, M241 and M251 logic controllers.
In addition, the TM3 expansion system is flexible due to the possibility of remotely locating some of the TM3 modules in the enclosure or another cabinet (up to 5 meters away, using a bus expansion system.
