TM3AI8, Schneider Electric FC4A Series PLC I/O Module for Use with Modicon M221, Modicon M241, Modicon M251, Current, Voltage,, Модуль

Modicon TM3 - Analog Input Modules

Analog input modules for Modicon M221, M241 and M251 logic controllers

Modicon TM3 analog input modules
Types with different numbers of analog inputs
Types with voltage, current or temperature inputs available
Terminal block with screw or spring connectors

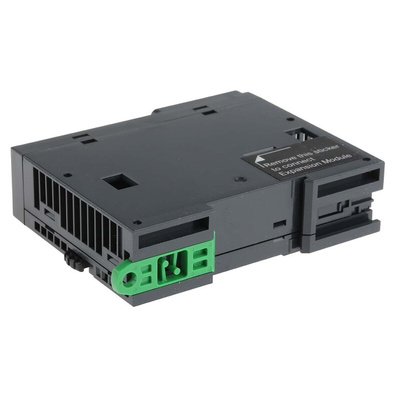

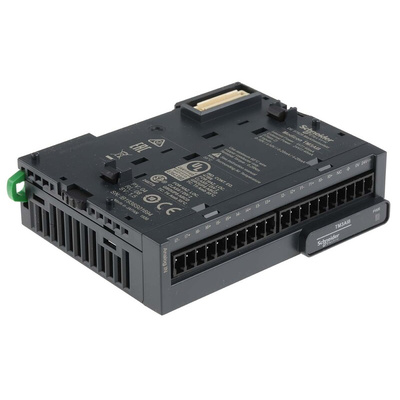

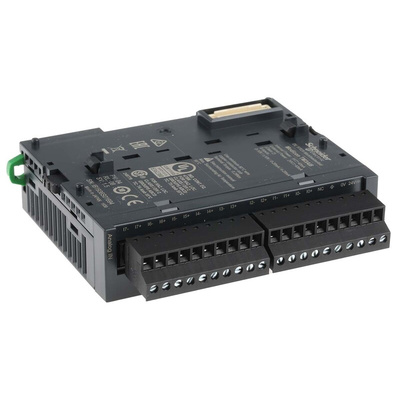

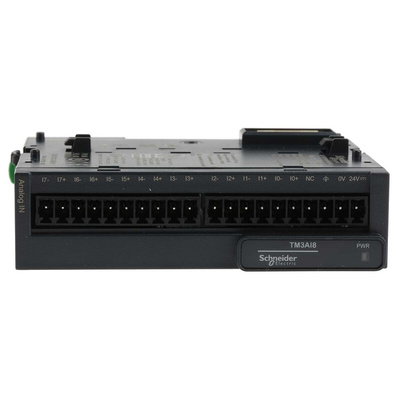

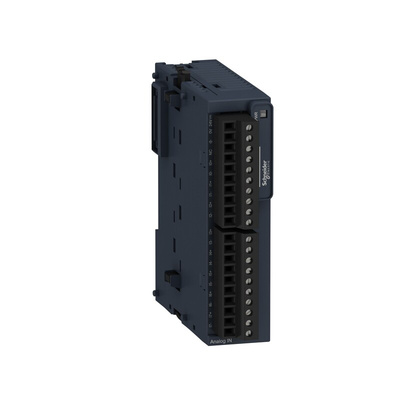

Schneider Electric PLC I/O Module, 8 Analogue Inputs, 24V DC Supply Voltage - FC4A Series - TM3AI8

Broaden your Modicon PLC's horizons with this I/O module from Schneider Electric. It comes with eight inputs that let you hook up lots of devices to your automated network. As the inputs are analogue, you can receive information via current and voltage signals from variable speed drives, sensors and other electrical devices. The unit has a 0 to 20mA current range and a -10 to +10V voltage range with a 12-bit resolution and 1ms sampling time. This supports the accurate measurement of temperatures, speeds and flows.

Features & Benefits

• Rail, plate and panel mounting options let you choose what's best for your system
• Simple interlock fixes the module to your main system in a jiffy
• Isolation between supply and input for electrical safety and damage prevention
• Resistant to electromagnetic fields for reliable data transfer and monitoring

Applications

• Materials handling
• Robotics systems
• Packaging equipment
• Food processing

Can I use this module with any Modicon PLC?

This module works with Modicon M221 (806-6837), M241 (806-6761), M251 (806-6758) and M262 (201-1450) programmable logic controllers, making it a widely compatible bit of kit.

Schneider Electric Modicon TM3

The Modicon TM3 is a MachineStruxure I/O system. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
The Modicon TM3 expansion module offer provides an opportunity to enhance the capabilities of Modicon M221, M241 and M251 logic controllers.
In addition, the TM3 expansion system is flexible due to the possibility of remotely locating some of the TM3 modules in the enclosure or another cabinet (up to 5 meters away, using a bus expansion system.
