TM3AI4, Schneider Electric FC4A Series PLC I/O Module for Use with Modicon M221, Modicon M241, Modicon M251, Current, Voltage, Модуль

Modicon TM3 - Analog Input Modules

Analog input modules for Modicon M221, M241 and M251 logic controllers

Modicon TM3 analog input modules
Types with different numbers of analog inputs
Types with voltage, current or temperature inputs available
Terminal block with screw or spring connectors

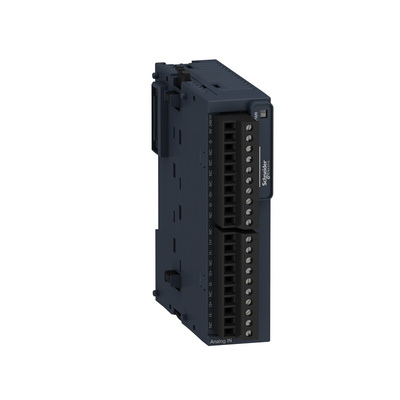

Schneider Electric FC4A Series PLC I/O Module, 90 x 23.6 x 70 mm, 4 Inputs - TM3AI4

This Schneider Electric is a versatile and efficient product designed for use with modicon M221, modicon M241, and modicon M251 PLC systems. It features 4 analogue inputs for both current and voltage signals, making it a top choice in the FC4A series. With its compact dimensions and high performance specifications, this module is ideal for a wide range of applications in industries such as automation, electronics, Electrical, and mechanical.

Features & Benefits

• 4 analogue inputs for current and voltage signals ensure precise and reliable data acquisition
• High resolution 12 bit analogue input resolution for accurate monitoring and control
• Wide input voltage range of 10V to 10V allows for versatile compatibility with various sensors and devices
• Green Premium product with sustainable design and manufacturing processes
• Compact design with easy installation on a Top hat type TH35 15 rail or panel surface
• Compliance with industry standards EN/IEC 61131 2 and EN/IEC 61010 2 201 for reliable performance and safety

Applications

• Ideal for use in automation systems that require precise analogue signal processing
• Suitable for applications in the electronics industry where accurate voltage and current measurements are crucial
• Perfect for integrating with Modicon M221, Modicon M241, and Modicon M251 PLC systems for enhanced functionality

Will it provide accurate voltage and current measurements?

Yes, this module offers accurate analogue input resolution for both current and voltage signals.

Is it easy to install on a DIN rail?

The TM3AI4 PLC I/O module can be easily mounted on a top hat type TH35-15 rail for quick installation.

Can it be used in high-traffic automation environments?

Yes, this module is designed to perform reliably in high-traffic PLC applications.

Is it suitable for both current and voltage input range of -10V to 10V?

Yes, the Schneider Electric TM3AI4 PLC I/O module supports both current and voltage input signals within the specified range.

Schneider Electric Modicon TM3

The Modicon TM3 is a MachineStruxure I/O system. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
The Modicon TM3 expansion module offer provides an opportunity to enhance the capabilities of Modicon M221, M241 and M251 logic controllers.
In addition, the TM3 expansion system is flexible due to the possibility of remotely locating some of the TM3 modules in the enclosure or another cabinet (up to 5 meters away, using a bus expansion system.
