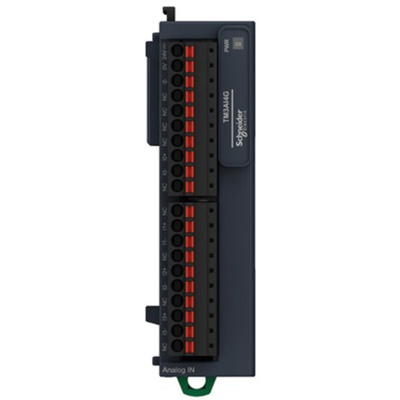

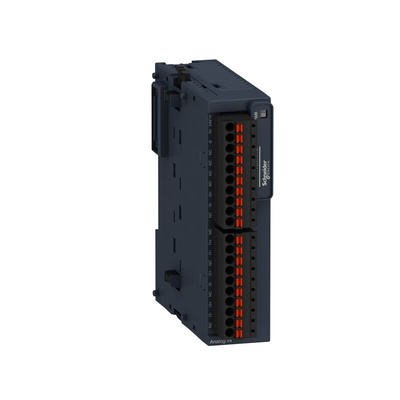

TM3AI4G, Schneider Electric FC4A Series PLC I/O Module for Use with Modicon M221, Modicon M241, Modicon M251, Current, Voltage,, Модуль

Schneider Electric PLC I/O Module For Use With Modicon Series, 24V DC Voltage Supply, 4 Inputs - FC4A Series - TM3AI4G

Need to transmit signals from control devices in your programmable logic controller? Choose this PLC I/O module from Schneider Electric. It has four analogue inputs to receive data from sensing equipment, such as potentiometers and pressure sensors, for transmission to your CPU. It's designed to boost the capabilities of Modicon M221, M241 and M251 processors so it's flexible and supports wide functionality. When installed vertically, this module has an operating temperature range between -10°C and +35°C, while mounting horizontally will extend the upper limit to +55°C.

Features & Benefits

• 30mA current consumption for energy efficiency
• Compact dimensions of 90 (H) x 70 (D) x 23.6mm (W) for setups with limited space
• Low weight of 100g to avoid putting strain on your system
• IP20 rating indicates it's touch-proof and protected from objects larger than 12mm

Applications

• Pharmaceutical industry
• Conveyor systems
• Machine building
• Industrial automation and control

What input ranges is this PLC I/O module configured for?

The device has two current inputs to receive signals from 4 to 20mA and 0 to 20mA. The input ranges of the two voltage channels are 0 to 10V and -10 to +10V. This makes it a versatile option.

Schneider Electric Modicon TM3

The Modicon TM3 is a MachineStruxure I/O system. The next generation of MachineStruxure from Schneider Electric is an intuitive solution for machine automation with all the features and functions you need to build machines that will improve your bottom line. From design and development, to commissioning and maintenance, MachineStruxure is a complete machine building solution with benefits all through the machine life cycle.
The Modicon TM3 expansion module offer provides an opportunity to enhance the capabilities of Modicon M221, M241 and M251 logic controllers.
In addition, the TM3 expansion system is flexible due to the possibility of remotely locating some of the TM3 modules in the enclosure or another cabinet (up to 5 meters away, using a bus expansion system.
