A9XPH257, Schneider Electric Acti 9 Busbar, 415V ac, 18mm Pitch

Acti9 Cutable Comb Busbars

Range of cutable comb busbars compatible with IC60, IID, ISW-NA, IK60, IID K and ISW switch disconnector

Mounting mode: Horizontal
Rated operational voltage: 415 V AC
Rated insulation voltage: 500 V AC

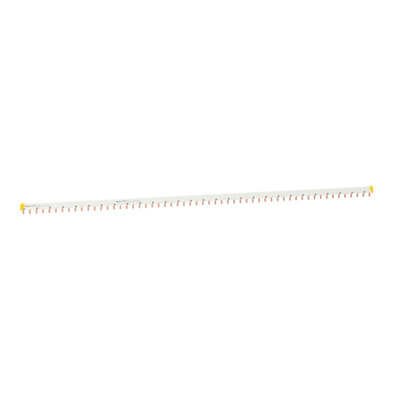

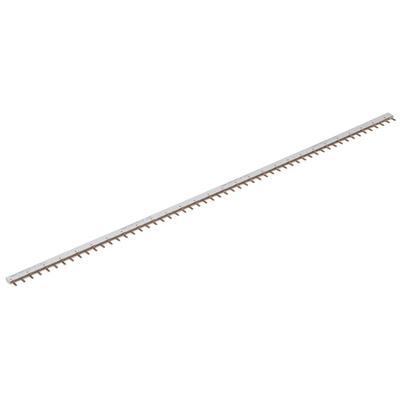

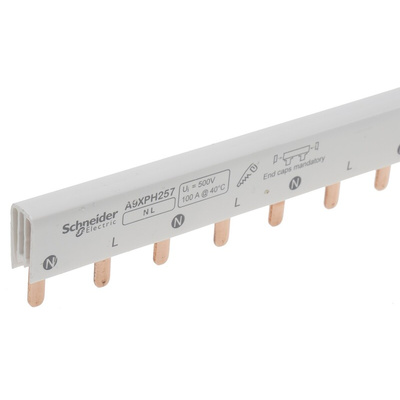

Schneider Electric Busbar, 57 x 18mm Modules, 1000mm Length - iC60 Series - A9XPH257

Complex power distribution is no problem when you get your hands on this Schneider Electric busbar. It has 57 x 18mm modules that transfer electrical energy, distributing it safely and efficiently to outgoing feeders. As this is a 28-way model, you can connect up to 28 devices to run via the busbar. It's designed to work with any switch disconnector from the IC60, IID, ISW-NA, IK60, IID K and ISW series, so it's a versatile pick offering broad compatibility. You can tailor the bar to match your application by cutting it to size – look out for handy markings on the insulation that help guide you.

Features & Benefits

• Rated insulation voltage of 500V AC to keep users safe from surges
• Easy to install as it suits horizontal mounting from top or bottom with tunnel-type or double-type terminals
• Rated voltage of 415V AC makes it a practical pick for industrial applications

Applications

• Power distribution
• Industrial control and automation
• Instrumentation and measurement

Is this busbar fire-resistant?

As it's been tested for fire resistance and extinguishes itself after 30 seconds at +960°C, this is a safe option for industrial use.
