A9XPH112, Schneider Electric Acti 9 1 Phase Busbar, 415V ac, 18mm Pitch

Acti9 Cutable Comb Busbars

Range of cutable comb busbars compatible with IC60, IID, ISW-NA, IK60, IID K and ISW switch disconnector

Mounting mode: Horizontal
Rated operational voltage: 415 V AC
Rated insulation voltage: 500 V AC

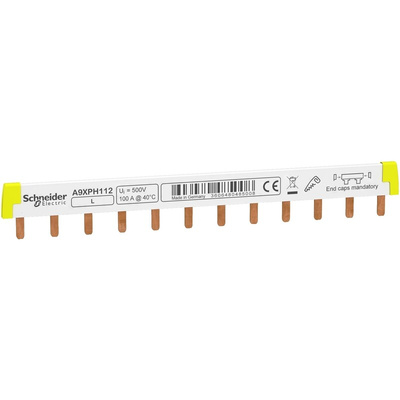

Schneider Electric Busbar, 100A Current Rating, 12 Modules of 18mm Pitch - Linergy FH Series - A9XPH112

Ensure your circuit breaker stays geared up and ready for action with this Schneider Electric busbar. It makes distributing incoming power to up to 12 MCBs quick and easy, so it helps to simplify power distribution in complex systems. To stop energy surges from causing equipment failure, the device is protected against short circuits. If the busbar is too long for your setup, simply cut it down to size – it's a cinch to saw it in a single pass.

Features & Benefits

• Insulated, which cuts down on the chance of electric shocks
• Self-extinguishing, so there's no chance of it contributing to a fire
• Comes with two end pieces that protect the unit from human touch and tools
• Cutting marks on its insulation, for quick and easy identification of where to saw the busbar

Applications

• Power utilities
• Automotive manufacturing
• Oil and gas industries
• Breweries

What circuit breakers are compatible with this busbar?

This busbar works with MCBs from Schneider Electric's Acti 9 iC60 or Acti 9 iK60 range, so you have the option to swap it between setups.

Busbar Data Sheet

Datasheet - A9XPH112

Datasheet - A9XPH112

Product Environmental Profile
