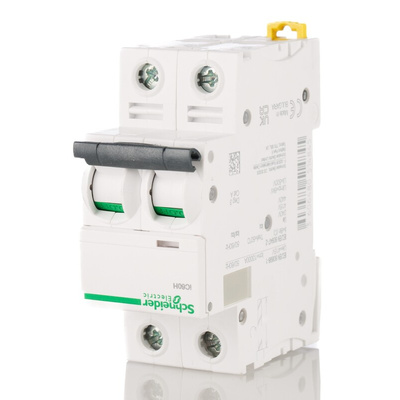

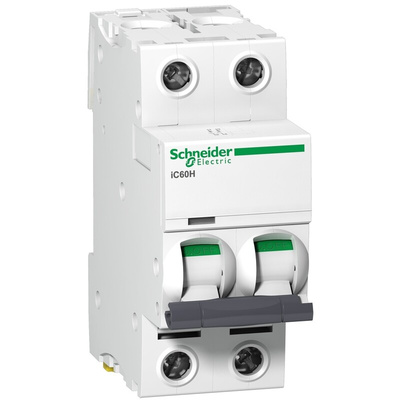

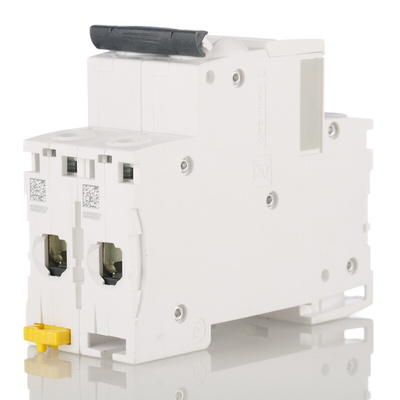

A9F53202, Schneider Electric Acti 9 C60HB MCB, 2P, 2A Curve B, 12 → 440V AC, 100 → 133V DC, 10 kA Breaking Capacity

Schneider Electric MCB, 2A Current Rating, Rated Voltage 12 to 440V AC and 100 to 133V DC - Acti 9 Series - A9F53202

Take your electrical protection to the next level with this versatile and hard-working MCB from Schneider Electric. The thermal-magnetic tripping mechanism reliably protects a low-voltage electrical circuit from overload and short circuit damage. With a type-B characteristic, it trips between 3 to 5 times the rated 2A current. This makes it suitable for both residential and industrial use. As the trip indicator shows red when the circuit is faulty, you don't need to play detective to find a problem. A green strip on the toggle makes it clear the contacts are open, so you can confidently carry out downstream maintenance. The unit has a mechanical lifespan of 20,000 cycles, so it's built for long-term use.

Features & Benefits

• Double clip ensures DIN rail mounting is swift and secure
• Electrical endurance of 10,000 cycles means connections are durable
• Padlockable toggles for added safety during maintenance

Applications

• Light industrial machines
• Safety systems
• Lighting setups
• Residential buildings

What operating temperature range can I use this MCB in?

It has a wide operating temperature range between -35°C and +70°C, so you can be sure this MCB handles harsh conditions.
