A9XPCM04, Schneider Electric Acti 9 Connector Monoconnect for use with Acti 9/Multi 9, Horizontal Comb Busbar for 18 mm Pitch

Schneider Electric Connector For Comb Busbar, Monoconnect, 100A - iC60 Series - A9XPCM04

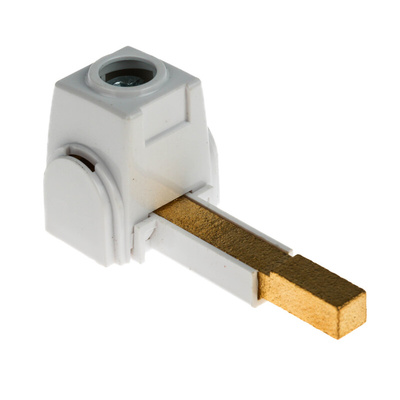

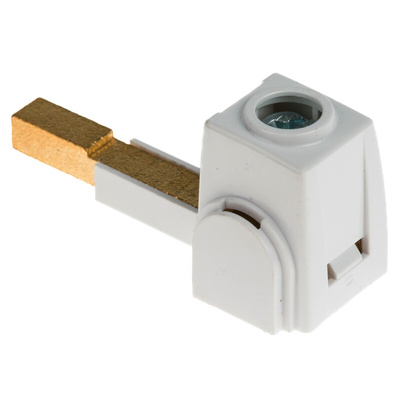

This connector from Schneider Electric links a busbar to a power supply in a control panel. It's compatible with comb busbars from the Schneider Electric Acti9 and Multi9 range. Together, these components allow for the quick and simple installation of circuit breakers – the connector simply clips onto the insulating material of a busbar for quick assembly. Its screw terminals have a high tightening torque to ensure wires are held firmly, which adds to the reliability of your control panel and reduces the need for regular maintenance.

Features & Benefits

• Free of toxic heavy metals for improved health and safety in the workplace
• Increases the stability of a busbar for improved reliability
• Light weight of only 64g for minimal strain on your control panel

Applications

• Industrial automation and control
• Robotics
• Mining and minerals processing

What are the dimensions of this connector?

The dimensions of this compact connector are 6.1 (L) x 7.9 (W) x 2.9mm (H). It's designed to maximise packing space in a control panel and has clip-on markers that make identification of your circuit easy.

Datasheet A9XPCM04

Datasheet - A9XPCM04

Product Environmental Profile
