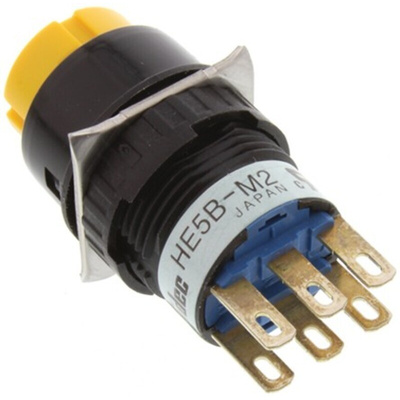

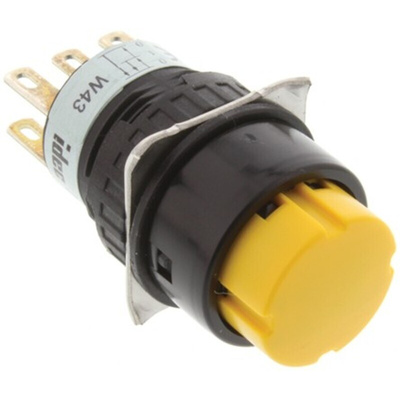

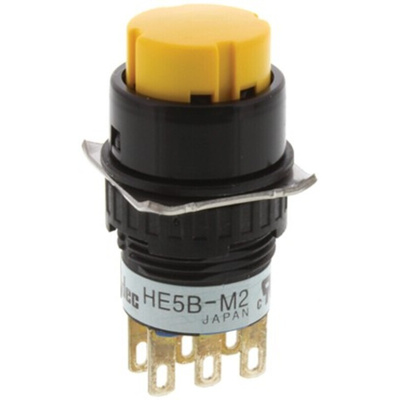

HE5B-M2PY, Idec Double Pole Double Throw (DPDT) Latching Enabling Switch, IP65, 16 (Dia.)mm, Central Fixing With Metal Lock Nut,, Кнопочный переключатель

IDEC HE5B Series Pushbutton Enabling Switch

Ideally suited for use as an enabling switch for manual robotic control. To assist the operator the "On" position requires only light pressure to maintain the function, a higher force is then required to switch from the "On" position to position 3. The contact will not close when released from "Off" position 3 to "Off" position 1. For a suitable IDEC "Pendant Grip" see stock no 8077086 . Rubber button covers are available in a choice of 3 colours; see typically stock no 8077112

IP65 rated with fitted rubber cover
Mounts in 16 mm round hole
3 position operation Off-On-Off

Standards

IEC60947-5-1, EN60947-5-1, JIS C8201-5-1, UL508, CSA C22.2 No 14

Enabling Switch

HE5B Series Pushbutton Enabling Switch Data Sheet

Enabling Switches Data Sheet
