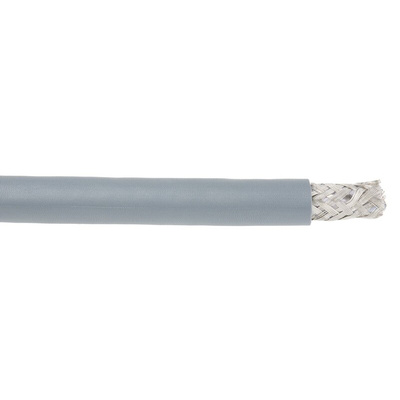

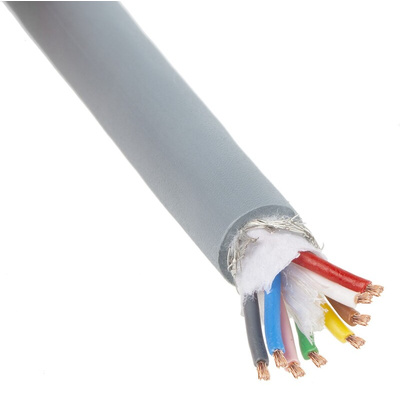

0030930, Lapp Twisted Pair Data Cable, 4 Pairs, 0.34 mm², 8 Cores, 22 AWG, Screened, Grey Sheath, Кабель

8078966
Номер производителя: 0030930Производитель: Lapp

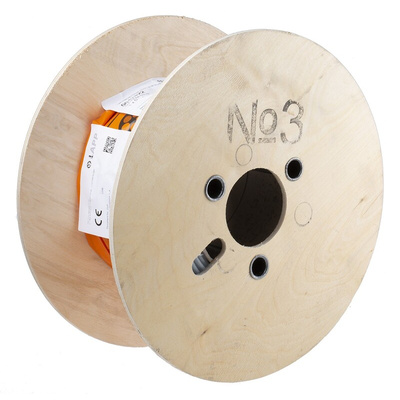

Цена за 1 катушку (50 метров)
131379.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Unitronic FD CP Powerchain Cable

From Lapp, this Unitronic series cable is optimized for use in power chains. With a high degree of mechanical and torsion resistance, this highly flexible cable is well suited for dynamic applications.

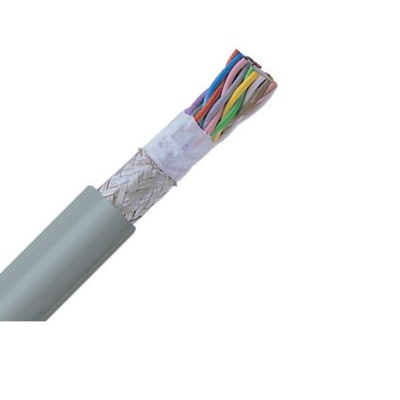

The Unitronic data transmission cable is comprised of extra-fine strands of bare copper wire in a special PUR outer sheath that is resistant to tears, notches and oil. Coupled with a wide operating temperature range, the cable is suitable for the kind of challenging environments where drag train and carrier machinery may be used.

Furthermore, this industrial cable features screened tinned copper braiding, offering EMI resistance for environments where electromagnetic interference is a concern. It is also halogen free and flame-retardant, for increased safety.

With great flexural strength, the Unitronic Powerchain FD CP data cable allows easy installation and modifications where necessary, and is a popular choice for industrial cables in power chain use.

Features & Benefits

• Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
• Overall braid minimises electrical interference
• Wide temperature range for applications in harsh climatic environments
• Cold Resistant and flexible at low temperatures
• Flame retardant to IEC 60332-1-2, VW-1, FT2
• Halogen-free
• Increased oil, abrasion & cut resistance
• Great flexural strength
• Microbe & hydrolysis resistance

Applications

Due to its flexibility and torsion resistance, the Unitronic Powerchain cable is well suited to any process that requires movement, such as linear robots. It is also ideal for torsional applications such as in wind turbine generators.

• Measuring, control and regulating circuits
• Drag trains for horizontal travel up to 100 meters
• Automated Handling Equipment

Accessories

Lapp Unitronic cables are best used with accessories that match their capabilities, and a range of appropriate cable glands are available.

• 136-8515 is an M12 Skintop Halogen Free EMC Cable Gland
• 136-8516 is an M16 Skintop Halogen Free EMC Cable Gland
• 136-8517 is an M20 Skintop Halogen Free EMC Cable Gland
• 136-8518 is an M25 Skintop Halogen Free EMC Cable Gland
• 136-8519 is an M32 Skintop Halogen Free EMC Cable Gland

LAPP Data Cable, 250V Voltage Rating, 3m/s Velocity - UNITRONIC Series - 0030930

Want a power chain that flexes to fit your setup? Link your devices with this 8-core data cable from LAPP. Its extra-fine bare copper strands zip transmissions along and are less likely to lose signals when they bend. Thanks to a 5-million cycle lifespan, you can bank on this product's continued performance. Top off the wire end with a SKINTOP Series EMC cable gland (136-8517) to protect your connection in polluted environments.

Features & Benefits

• Thin 22AWG wire is simple to route during setup
• Performs in demanding applications, courtesy of a wide -40°C to +80°C operating temperature range
• Halogen-free, so won't release toxic fumes in the event of a fire

Applications

• Control systems
• Transportation sector
• Industrial automation
• Data networks

How sensitive is this cable to EMI?

For smooth operation, this cable's twisted pair and braided design minimises crosstalk that could interrupt or distort signals.

Техническая спецификация
pdfDatasheet - LAPP UNITRONIC FD CP plus
pdfCable Selection Guide
Американский размер проводов:
22 AWG
Внешний диаметр:
9.2мм
Встречающиеся стандарты:
IEC60332-1
Кабель - тип:
FD CP
Кабельные формы:
Витая пара
Количество пар:
4
Количество ядер:
8
Материал внешней оболочки:
PUR
Номинальное напряжение:
250 В
Площадь поперечного сечения:
0.34 мм²
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
С экранированием/без экранирования:
Экранированный
Серия:
UNITRONIC
Тип экрана:
S/UTP
Характеристика горения:
Flame Retardant
Цвет оболочки:
Серый
Экранированный/неэкранированный:
Screened
