0031320, Lapp Twisted Pair Data Cable, 2 Pairs, 0.22 mm², 4 Cores, 24 AWG, Screened, 50m, Grey Sheath, Кабель

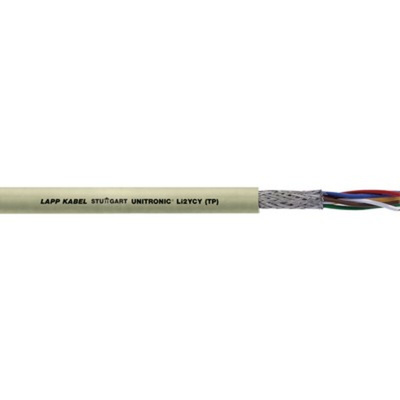

Unitronic Li2YCY Cable

From Lapp, this Unitronic Li2YCY (TP) cable is a low frequency low capacitance data cable that is well suited for wiring data systems that require a transmission of low, sensitive signals and high bit rates.

The cable has a twisted pair construction, and features a tinned-copper braided screen that protects against signal interference. It also had a PVC sheath, and is optimized for installations with limited flexibility, and for use in dry or damp interiors.

Features and Benefits

• Qualified for RS422 and RS485 interfaces
• Intended for limited flexible use and for fixed installation
• Flame retardant to IEC 60332-1-2
• Stranded 7-wire bare copper conductor
• Operating temperature in fixed installations: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C

Applications

Unitronic Li2YCY cable is suitable for signal, control and measuring applications, and is often used in;

• Electronic circuits
• Computer Systems
• Machine design
• Office equipment

Accessories

Unitronic cable should be used with accessories that match its capabilities, such as the Lapp range of Skintop MS-HF-M SC cable glands that have low resistance contact as standard.

• 136-8515 is an M12 Skintop EMC Cable Gland
• 136-8516 is an M16 Skintop EMC Cable Gland
• 136-8517 is an M20 Skintop EMC Cable Gland
• 136-8518 is an M25 Skintop EMC Cable Gland
• 136-8519 is an M32 Skintop EMC Cable Gland

LAPP UNITRONIC Series Data Cable, PVC, S/UTP Shield - 0031320

This efficient data cable is a flame retardant cable. With a cable shape of twisted pair and Li2YCY cable type, this product ensures reliable performance in various applications across automation, electronics, electrical, and mechanical industries.

Features & Benefits

• 24 AWG twisted pair cable for optimal signal transmission
• 100 Ω impedance cable for stable electrical characteristics
• Grey PVC outer sheath for durability and protection
• S/UTP shielded cable to prevent signal interference
• ECA CPR certification for enhanced safety compliance
• IEC60332-1 compliant cable for fire protection

Applications

• Ideal for use in automation systems
• Suitable for electrical panel wiring
• Perfect for data transmission in electronic devices
• Can be used in machinery and equipment connections

Can it provide reliable data transmission in harsh industrial environments?

Yes, the data cable is designed to offer stable performance even in challenging conditions.

Is it suitable for use in both indoor and outdoor applications?

The data cable is versatile and can be used in various environments, both indoor and outdoor.
