0031326, Lapp 3 Pair Screened Multipair Industrial Cable 0.34 mm²(IEC60332-1) Grey Unitronic Li2YCY Series, Кабель

8079039
Номер производителя: 0031326Производитель: Lapp
Цена за 1 катушку (50 метров)
49908.00 руб. (С НДС) *
Количество 5+
Цена 46614.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

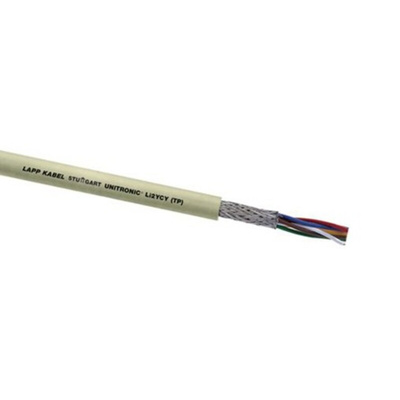

Unitronic Li2YCY Cable

From Lapp, this Unitronic Li2YCY (TP) cable is a low frequency low capacitance data cable that is well suited for wiring data systems that require a transmission of low, sensitive signals and high bit rates.

The cable has a twisted pair construction, and features a tinned-copper braided screen that protects against signal interference. It also had a PVC sheath, and is optimized for installations with limited flexibility, and for use in dry or damp interiors.

Features and Benefits

• Qualified for RS422 and RS485 interfaces
• Intended for limited flexible use and for fixed installation
• Flame retardant to IEC 60332-1-2
• Stranded 7-wire bare copper conductor
• Operating temperature in fixed installations: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C

Applications

Unitronic Li2YCY cable is suitable for signal, control and measuring applications, and is often used in;

• Electronic circuits
• Computer Systems
• Machine design
• Office equipment

Accessories

Unitronic cable should be used with accessories that match its capabilities, such as the Lapp range of Skintop MS-HF-M SC cable glands that have low resistance contact as standard.

• 136-8515 is an M12 Skintop EMC Cable Gland
• 136-8516 is an M16 Skintop EMC Cable Gland
• 136-8517 is an M20 Skintop EMC Cable Gland
• 136-8518 is an M25 Skintop EMC Cable Gland
• 136-8519 is an M32 Skintop EMC Cable Gland

Техническая спецификация
pdfCables Selection Guide
Американский размер проводов:
22 AWG
Внешний диаметр:
8.4мм
Волновое сопротивление:
100 Ом
Встречающиеся стандарты:
IEC60332-1
Кабель - тип:
Li2YCY
Количество пар:
3
Материал внешней оболочки:
ПВХ
Номинальное напряжение:
250 В
Площадь поперечного сечения:
0.34 мм²
Серия:
Unitronic Li2YCY
Тип экрана:
S/UTP
Характеристика горения:
Flame Retardant
Цвет оболочки:
Серый
Экранированный/неэкранированный:
Screened
