0031331, Lapp Twisted Pair Data Cable, 3 Pairs, 0.5 mm², 6 Cores, 20 AWG, Screened, 50m, Grey Sheath, Кабель

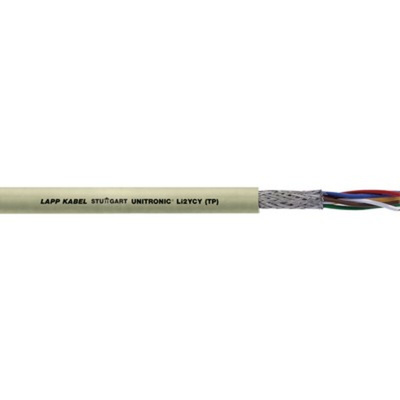

Unitronic Li2YCY Cable

From Lapp, this Unitronic Li2YCY (TP) cable is a low frequency low capacitance data cable that is well suited for wiring data systems that require a transmission of low, sensitive signals and high bit rates.

The cable has a twisted pair construction, and features a tinned-copper braided screen that protects against signal interference. It also had a PVC sheath, and is optimized for installations with limited flexibility, and for use in dry or damp interiors.

Features and Benefits

• Qualified for RS422 and RS485 interfaces
• Intended for limited flexible use and for fixed installation
• Flame retardant to IEC 60332-1-2
• Stranded 7-wire bare copper conductor
• Operating temperature in fixed installations: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C

Applications

Unitronic Li2YCY cable is suitable for signal, control and measuring applications, and is often used in;

• Electronic circuits
• Computer Systems
• Machine design
• Office equipment

Accessories

Unitronic cable should be used with accessories that match its capabilities, such as the Lapp range of Skintop MS-HF-M SC cable glands that have low resistance contact as standard.

• 136-8515 is an M12 Skintop EMC Cable Gland
• 136-8516 is an M16 Skintop EMC Cable Gland
• 136-8517 is an M20 Skintop EMC Cable Gland
• 136-8518 is an M25 Skintop EMC Cable Gland
• 136-8519 is an M32 Skintop EMC Cable Gland

LAPP UNITRONIC Series Data Cable, PVC, S/UTP Shield - 0031331

The LAPP data cable is a high-quality twisted pair cable designed for demanding applications in the automation, electronics, electrical, and mechanical industries. This cable features a Li2YCY cable type, ensuring top-notch performance and reliability in various settings.

Features & Benefits

• 20 AWG cable suitable for a wide range of applications
• Shielded PVC construction for enhanced durability and protection
• Flame-retardant properties for increased safety
• 100 Ω impedance for optimal signal transmission
• ECA certification guarantees compliance with industry standards
• Screened S/UTP design minimises electromagnetic interference

Applications

• Ideal for use in automation systems
• Suitable for electronic control units
• Perfect for electrical signal transmission
• Great for mechanical control applications

Can it be used in harsh industrial environments?

Yes, the Lapp data cable is designed to withstand harsh industrial environments, making it perfect for use in challenging settings.

Will it provide reliable signal transmission over long distances?

Yes, the 100 Ω impedance and shielded design ensure reliable signal transmission over long distances without any interference.

Can it be used for outdoor installations?

The Lapp data cable is not recommended for outdoor installations due to its PVC construction, which may degrade under prolonged exposure to outdoor elements.

Does it come in different lengths and colours?

Yes, the Lapp data cable is available in various lengths and colours to suit different installation requirements and preferences.
