0036916, Lapp ÖLFLEX SERVO FD Control Cable, 14 Cores, 0.25 mm², 0.5 mm², CY, Screened, 50m, Green PUR Sheath, 24 AWG, Кабель

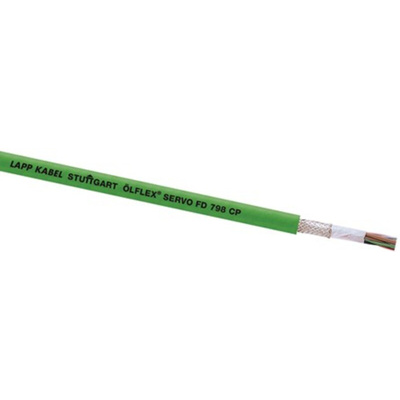

Olflex Servo FD 798CP Cable

From Lapp, this OLFLEX SERVO cable is suitable for use with encoders and resolvers, and ideal as a connecting cable between servo controllers and speed generators. Despite its thin size and optimized weight, the cable features a highly durable PUR outer sheath that makes it ideal for use in power chains, with extended line performance for long travel lengths or high acceleration.

This halogen-free cable also has abrasion resistance, as well as good resistance to oils, acids and chemicals. This means it can meet specialist manufacturing demands, and thanks to its UV and temperature resistance, can even be used for harsh outdoor climates.

The OLFELX SERVO 798CP cable is EMC compliant, so is even protected where electromagnetic signal interference is a concern.

Features and Benefits

• Screened
• EMC Compliant
• Halogen-free
• Mechanical Resistance
• Oil Resistance
• UV Resistance
• Operating Range for Flexing: -40°C to +90°C
• Operating Range for Fixed Installation: -50°C to +90°C

Applications

This OLFLEX SERVO cable is ideal for use in a variety of applications where a dynamic power chain cable is needed for demanding environments, even in wet conditions.

• Rotary Encoder Systems
• Machine Tools
• Transfer Lines
• Assembly and Production Lines
• Machines

Standards

UL, CSA, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 10.3mm Outer Diameter, Halogen-Free - ÖLFLEX SERVO FD Series - 0036916

Turn to this control cable from LAPP for efficient signalling in your automation network. It has a braided screen that cuts the crosstalk from other devices and keeps transmissions crisp and clear. The cores are protected by chemical-resistant PP insulation, which ensures a long service life in heavy-duty applications. This cable can withstand voltage surges up to 1500V for additional electrical safety.

Features & Benefits

• Safe for use in harsh environments, thanks to its wide operating temperature range between -50°C and +90°C
• Green sheath colour makes it easy to spot in busy setups

Applications

• Manufacturing sector
• Power chains
• Transfer lines

Is this cable suitable for use in areas with high foot traffic?

Yes. This cable's sheath is made from robust PUR, which helps prevent damage from tearing, impact and abrasion.
