0038325, Lapp Twisted Pair Data Cable, 25 Pairs, 0.14 mm², 50 Cores, 26 AWG, Screened, 50m, Grey Sheath, Кабель

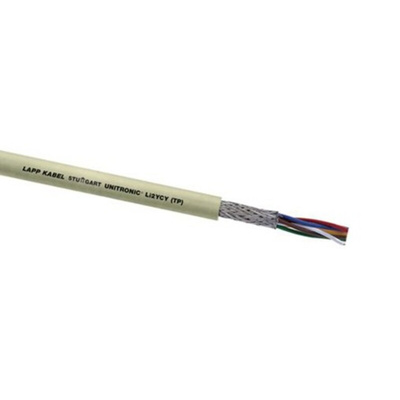

Unitronic LiHCH/LSZH TP Cable

From Lapp, this Unitronic LiHCH (TP) cable is a low frequency data transmission cable for a variety of suitable applications. The cable is halogen-free, with low smoke density, and is also screened to minimize electrical interference.

The cable is constructed of fine-wire copper strands with halogen free core insulation. It then has a layer of braided shielding, and a halogen-free outer sheath.

Features & Benefits

• Low capacitance due to polyolefin-based insulation
• Overall braid minimizes electrical interference
• Flame-retardant according IEC 60332-1-2
• Low smoke zero halogen (LSZH)
• Operating temperature range of with occasional flexing: -5°C to +70°C
• Operating temperature range in fixed installations: -30°C to +80°C

Applications

This cable Low smoke and zero halogen, which makes it ideal for use in applications where public safety and protection of sensitive property is paramount. This means it is particularly suited for use in public buildings and public transport systems, or anywhere where there is a high density of people.

• Data processing Measurement and control engineering
• Safety related systems
• Computer systems
• Instrumentation systems
• Office equipment

Accessories

Unitronic cables should be used with accessories that match their capabilities. As such, Lapp provides a range of cable glands with a low resistance screen contact.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

LAPP Data Cable, 1.2kV Test Voltage, Copper Conductors - UNITRONIC LiHCH (TP)Series - 0038325

Need a trusty middleman to carry messages between communication devices? Run with this data cable from LAPP. Its conductors are twisted in pairs to prevent interference, giving you noise-free signal transmission. As the cord is unterminated at both ends, you can choose connectors that suit your system. The polyolefin-based sheath provides insulation to protect your workforce from electrical hazards, while its halogen-free construction restricts the emission of toxic fumes if it's heated.

Features & Benefits

• Voltage rating of 250V to pair up with low-voltage applications
• Broad operating temperature range of -30°C to +80°C in fixed installations for use in demanding settings
• Braid shielding protects signals from EMI for crystal-clear transfer

Applications

• Server banks
• Transportation industry
• Medical equipment

How flexible is this data cable?

This unit has a minimum bending radius of six times its outer diameter, which means it's suitable for flexible installation around corners.
