0038606, Lapp Twisted Pair Data Cable, 6 Pairs, 0.5 mm², 12 Cores, 20 AWG, Screened, 50m, Grey Sheath, Кабель

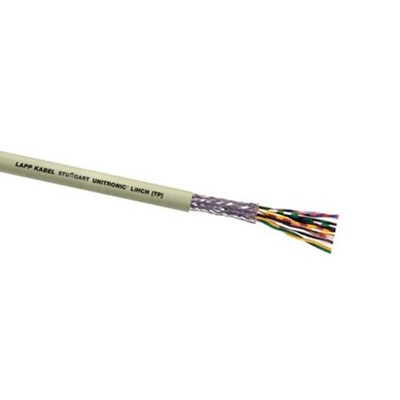

Unitronic LiHCH/LSZH TP Cable

From Lapp, this Unitronic LiHCH (TP) cable is a low frequency data transmission cable for a variety of suitable applications. The cable is halogen-free, with low smoke density, and is also screened to minimize electrical interference.

The cable is constructed of fine-wire copper strands with halogen free core insulation. It then has a layer of braided shielding, and a halogen-free outer sheath.

Features & Benefits

• Low capacitance due to polyolefin-based insulation
• Overall braid minimizes electrical interference
• Flame-retardant according IEC 60332-1-2
• Low smoke zero halogen (LSZH)
• Operating temperature range of with occasional flexing: -5°C to +70°C
• Operating temperature range in fixed installations: -30°C to +80°C

Applications

This cable Low smoke and zero halogen, which makes it ideal for use in applications where public safety and protection of sensitive property is paramount. This means it is particularly suited for use in public buildings and public transport systems, or anywhere where there is a high density of people.

• Data processing Measurement and control engineering
• Safety related systems
• Computer systems
• Instrumentation systems
• Office equipment

Accessories

Unitronic cables should be used with accessories that match their capabilities. As such, Lapp provides a range of cable glands with a low resistance screen contact.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

LAPP Data Cable, 80nF/km Conductor-to-Conductor Capacitance, Polyolefin-Based Insulation - UNITRONIC LiHCH (TP)Series - 0038606

For error-free signal exchange between industrial communication devices, choose this data cable from LAPP. It has 12 conductor strands twisted in pairs to prevent crosstalk, assuring you of noiseless transmission. The cord comes unterminated, so you can pick an adaptor that matches your design needs. Thanks to its low-halogen construction, it doesn't release toxic fumes if there's a fire. Polyolefin insulation prevents electric shock for safe handling and operation.

Features & Benefits

• Reel length of 50m provides enough for long runs or numerous tasks
• Braid shielding limits EMI for clear and reliable signal transfer
• Voltage rating of 250V makes it suitable for low-voltage operations

Applications

• Office blocks
• Telecommunications equipment
• Machine building
• Process control

What's the temperature tolerance of this data cable?

This product operates in temperatures between -40°C and +80°C in fixed installations, which means it's fit for use in demanding conditions.
