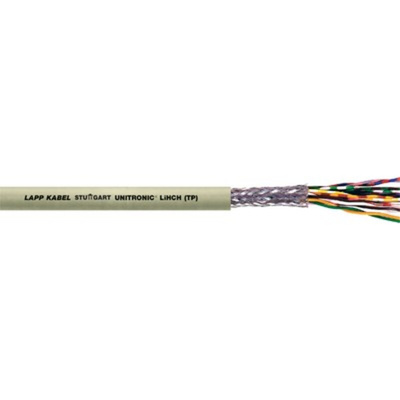

0038608, Lapp Twisted Pair Data Cable, 8 Pairs, 0.5 mm², 16 Cores, 20 AWG, Screened, 50m, Grey Sheath, Кабель

Unitronic LiHCH/LSZH TP Cable

From Lapp, this Unitronic LiHCH (TP) cable is a low frequency data transmission cable for a variety of suitable applications. The cable is halogen-free, with low smoke density, and is also screened to minimize electrical interference.

The cable is constructed of fine-wire copper strands with halogen free core insulation. It then has a layer of braided shielding, and a halogen-free outer sheath.

Features & Benefits

• Low capacitance due to polyolefin-based insulation
• Overall braid minimizes electrical interference
• Flame-retardant according IEC 60332-1-2
• Low smoke zero halogen (LSZH)
• Operating temperature range of with occasional flexing: -5°C to +70°C
• Operating temperature range in fixed installations: -30°C to +80°C

Applications

This cable Low smoke and zero halogen, which makes it ideal for use in applications where public safety and protection of sensitive property is paramount. This means it is particularly suited for use in public buildings and public transport systems, or anywhere where there is a high density of people.

• Data processing Measurement and control engineering
• Safety related systems
• Computer systems
• Instrumentation systems
• Office equipment

Accessories

Unitronic cables should be used with accessories that match their capabilities. As such, Lapp provides a range of cable glands with a low resistance screen contact.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

LAPP UNITRONIC Series Data Cable, Twisted Pair, LiHCH - 0038608

This twisted pair data cable by LAPP, is a high-quality, flame-retardant cable designed for various applications within the automation, electronics, electrical, and mechanical industries. It offers excellent performance and reliability, making it a trusted choice for professionals seeking durable and safe cabling solutions.

Features & Benefits

• Twisted pair design for decoupling circuits and minimizing crosstalk effects
• Flame-retardant properties ensuring safety in case of fire
• Screened to reduce electrical interference
• Halogen-free construction for low smoke density and minimal corrosive gases
• Suitable for use in areas with high footfall and valuable assets protection
• Complies with CPR Certification ECA standards for fire safety
• Shielded with S/UTP for additional protection

Applications

• Ideal for data processing, measurement, and control engineering
• Suitable for use in computer systems, industrial plants, and public buildings
• Perfect for instrumentation systems, office equipment, and safety-related systems

Can it be used in high-density areas?

Yes, this cable is suitable for areas with a high density of people.

Will it provide protection in the event of a fire?

Yes, the flame-retardant properties ensure safety in case of fire.
