0038702, Lapp Twisted Pair Data Cable, 2 Pairs, 0.75 mm², 4 Cores, 18 AWG, Screened, 50m, Grey Sheath, Кабель

LAPP Data Cable, LiHCH Type, 18 AWG - UNITRONIC Series - 0038702

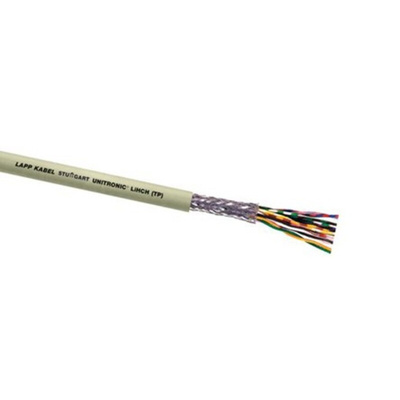

Looking for a way to send data without being tripped up by EMI? You can count on this screened data cable from LAPP. It features two twisted pairs made of four bare copper cores shielded by a tinned-copper braid to block out crosstalk. The halogen-free outer sheath won't release any toxic gases in the event of fire, which makes this cable particularly suitable for busy workplaces or public settings.

Features & Benefits

• Slim 0.75mm² cross-section and 9.5mm outer diameter, meaning it fits easily in tight spaces
• Operating temperature range of -30°C to +80°C, so it can take the heat
• Polyolefin-based inner insulation is resistant to chemical corrosion, making it suitable for use in industrial settings

Applications

• Data centres
• Instrumentation systems
• Office equipment
• Public buildings

Is this cable flexible?

This versatile cable has a minimum bending radius of six times its 8.7mm outer diameter in fixed installations and can cope with occasional flexing.

UNITRONIC® LiHCH (TP) Datasheet

Cable Selection Guide
