0046913, Lapp 3 Core Power Cable, 2.5 mm², 50m, Black Silicone Sheath, High Temperature, 500 V, Кабель

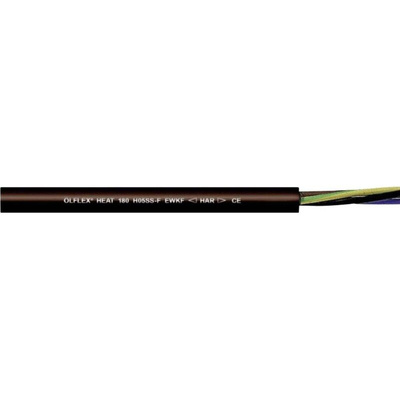

Olflex Heat 180° H05SS-F EWKF Cable

From Lapp, the Olflex Heat H05SS-F EWKF cable is for use in areas with high ambient temperatures. The silicone power cable is notch and tear resistant, meaning it is resistant to occasional mechanical stresses. The Olflex Heat series cable is oil-resistant, and more durable than other H05SS-F cables. As such are suitable for harsh environments.

This Olflex multi-core power and control cable is flexible as well as durable, and features a small cable diameter that is convenient for installations where space saving is concerned.

Features and Benefits

• Excellent resistance to temperature
• Cold resistant
• Europe-wide standardised silicone connection cables with increased mechanical performance
• Halogen-free and flame-retardant to IEC 60332-1-2
• Good hydrolysis and UV-resistance
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• EWKF: Initial tear propagation and notch resistance
• Insulating Polytetrafluoroethylene cables for most extreme loads
• Ideal for harsh environments
• Stress crack resistant to frequent ambient temperature fluctuations
• Low outgassing behavior

Applications

With UV and cold resistance, this range of cables are suitable for harsh environments and even some outdoor use. The heat resistant properties of the Olflex Heat cable mean it is suited for areas where temperature fluctuates, and are particularly suited to;

• Industrial Furnaces
• Bakery ovens
• Sauna and Solarium
• Thermal Elements
• HVAC Systems
• Commercial and Heavy Duty Lighting

Accessories

Olflex Heat cable must be used with accessories that match its capabilities. As such, Lapp provides a range of environmentally resistant cable glands, such as the Skintop range of IP68 cable glands.

• 405-8744 is an M16 IP68 and EMC rated Cable Gland
• 405-8750 is an M20 IP68 and EMC rated Cable Gland
• 405-8766 is an M25 IP68 and EMC rated Cable Gland
• 405-8772 is an M32 IP68 and EMC rated Cable Gland
• 405-8788 is an M40 IP68 and EMC rated Cable Gland
• 405-8794 is an M50 IP68 and EMC rated Cable Gland

Standards

IEC 60332-1-2, EN 50525-2-83 (H05SS-F)

LAPP Power Cable, 10.4mm OD, 50m Length - ÖLFLEX Heat 180 H05SS-F EWKF Series - 0046913

When the heat is on, heavy-duty industrial applications stay on track with this 2.5mm² cross-section power cable from LAPP. It can handle temperatures up to +180°C thanks to its robust silicone jacket. This sheath material also protects the cable's conductors from chemicals, oils, animal fats and alcohol, so it helps to keep the maintenance list short. The cord reliably relays up to 500V from a supply to your equipment. You can count on this product to flex to meet your needs if setup space is tight.

Features & Benefits

• Tinned copper conductors for reliable power transfer
• Halogen-free material releases no toxins if it catches alight
• UV resistance helps prevent damage from direct sunlight

Applications

• Commercial bakeries
• Electric vehicles
• Hotels
• HVAC systems

Does this power cable have a drain wire?

Yes, it does. This safety feature grounds unwanted electrical noise, protecting equipment and reducing downtime.
