0091300, Lapp 2 Core Power Cable, 0.5 mm², 50m, Black Polytetrafluoroethylene PTFE Sheath, Twisted Pair, 500 V, Кабель

Olflex Heat 260° Cable

From Lapp, the Olflex Heat 260 C MC cable is a heat-resistant solution for power and control applications where fluctuating temperatures would render conventional cables unusable.

This cable is also shielded, featuring copper screening that ensures EMC compliance even under extreme loads. Coupled with its stress crack resistance, these factors make the Olflex Heat 260 C MC range of cables ideal for use in sensor system applications.

The cable is made of fine-twisted nickle-plated copper strands, with a PTFE core insulation. It also has a PTFE based outer sheath that is flame retardant.

Despite its robustness, the Olflex Heat cable is lightweight with a small diameter, which makes it convenient for fixed or occasional flexing installations where space-saving is a factor.

Features and Benefits

• Copper-screened for EMC Compliance
• Space saving design
• Stress crack resistant
• Resistant to contact with mostly all highly aggressive chemical media
• Low outgassing behavior
• UV resistant and suitable for outdoor use
• Oil, acid, and chemical resistance
• Low water absorption
• Resistant to microbes

Applications

Olflex Heat high-temperature cable is used in a variety of applications, and it's EMC shielding ensures it can be used for purposes where interference from electromagnetic signals is a concern. With its resistance to temperature and media, this cable range is also ideal for harsh environments and suitable for both indoor and outdoor use.

• Industrial furnaces
• Foundries
• Chemical industry
• Paint shop line technology
• Heating elements
• Wind turbines
• Temperature resistance of -190°C up to +260°C

Accessories

• 405-8744 is an M16 IP68 and EMC rated Cable Gland
• 405-8750 is an M20 IP68 and EMC rated Cable Gland
• 405-8766 is an M25 IP68 and EMC rated Cable Gland
• 405-8772 is an M32 IP68 and EMC rated Cable Gland
• 405-8788 is an M40 IP68 and EMC rated Cable Gland
• 405-8794 is an M50 IP68 and EMC rated Cable Gland

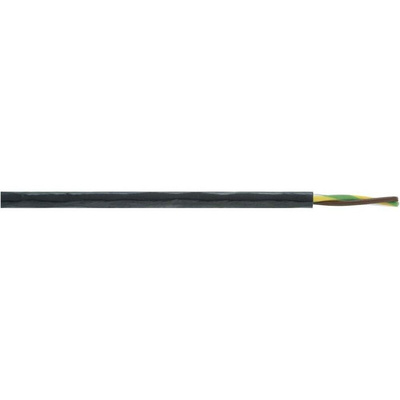

LAPP ÖLFLEX Series Power Cable, Nickel Plated Copper Conductor, 50m Length - 0091300

The LAPP power cable, also known as the high temperature power cable, is a robust and chemical-resistant cable suitable for extreme loads in automation, electronics, electrical, and mechanical industries. With a temperature range of -190°C to +260°C, this cable is designed for use in environments with very high operating temperatures, heavy chemical exposure, or confined spaces.

Features & Benefits

• Flame retardant wire suitable for harsh environments
• PTFE insulation material ensures excellent chemical, thermal, and electrical performance
• Cross sectional area of 0.5 mm² allows for flexibility and easy installation
• CE certified with a voltage rating of 500 V for reliable performance
• 2 core power cable for efficient power transmission
• Nickel plated copper Conductor Material for superior conductivity
• Flexible PTFE cable construction for ease of use
• Outer diametre of 3.9 mm for space-saving installation
• Temperature-resistant design for long-lasting performance

Applications

• Industrial furnace construction
• Foundries
• Chemical industry
• Power plant engineering
• Paint shop line technology
• Heating elements
• Polymer processing
• Wind turbine engineering
• Sensor systems, e.g. level sensors

Can it withstand high temperatures?

Yes, the Lapp power cable is designed to operate in temperatures ranging from -190°C to +260°C, making it suitable for extreme heat environments.

Will it provide reliable performance in harsh conditions?

The cable is flame retardant and chemical resistant, ensuring durability in tough industrial settings.

Is it easy to install?

With a flexible PTFE construction and compact 3.9 mm diametre, the cable is easy to handle and install in various applications.

Can it be used for outdoor applications?

Yes, the cable is UV-resistant, making it suitable for outdoor use in a variety of industries.

Is the cable suitable for sensitive sensor technology?

The Lapp power cable is designed to meet the requirements of sensor systems, including level sensors, with its high-quality construction.
