BZE6-2RN, Honeywell BZE6 Series Plunger Limit Switch, NO/NC, IP66, SPDT, Die Cast Zinc Housing, 600V ac Max, 15A Max

BZE6 Enclosed Limit Switches

The BZE6 series from Honeywell provides a range of metal housed limit switches with enhanced precision operation and robust actuation. The BZE6 limit switches allow for easy wiring by featuring a large wiring enclosure, the BZE6 range are all side mountable.

BZE6 series featuring side mounting
Die-cast zinc housing for robustness and durability
Wide temperature operating range

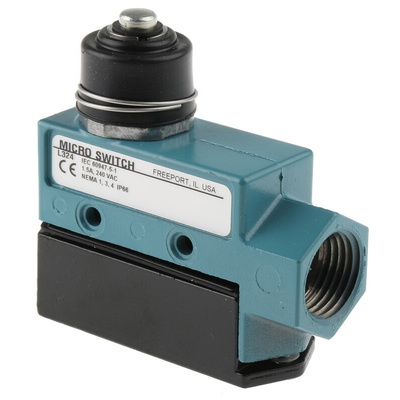

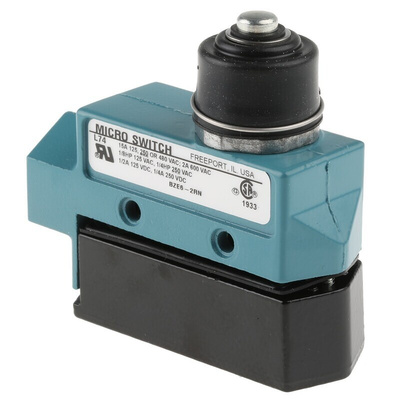

Honeywell Enclosed Limit Switch, Pin Plunger, 1/2 NPT - BZE6 Series - BZE6-2RN

This medium-duty limit switch from Honeywell acts as a contact proximity sensor to stop or start a machine when there's an object in its path. You can use it to count items, measure their limit of travel or prevent a collision between your machine and other items. The switch has an epoxy-coated zinc housing that resists corrosion, making it suitable for use in humid environments or outdoors. It also features a large wiring enclosure and a 1/2 threaded female NPT (National Pipe Thread) connector for easy installation. The unit's compact size makes it suitable for applications where space is limited.

Features & Benefits

• NO/NC (normally open/normally closed) configuration options for versatility
• IP66 (ingress protection) rating means it's dust-tight and has high water resistance
• Operating temperature range between -32°C and +71°C makes it suitable for extreme environments
• Pin plunger actuator type for enhanced durability

Applications

• Material handling
• Conveyor belts
• Food and beverage
• Caustic waste handling

How do I know which limit switch to use?

In selecting a limit switch, the first factor to consider is the application. Next, you should consider environmental aspects such as exposure to moisture. You should also select a limit switch with a matching electrical rating as the system it will be installed in.

Approvals

UL, CSA.
