GLAA20A2B, Honeywell GLA Series Adjustable Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, Die Cast Zinc Housing, 600V ac Max, 10A

Honeywell Snap-Action Roller Lever Limit Switch, 10A, 250V DC - GLA Series - GLAA20A2B

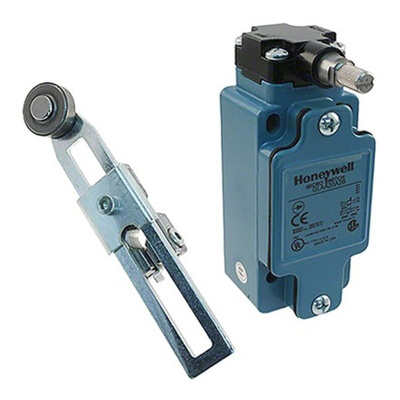

This roller lever limit switch from Honeywell is a sensing device that uses an actuator to detect the presence of an object. It's supplied ready to install as it includes the actuator and an integral contact block, making assembly quick and simple. The rugged die-cast zinc housing is resistant to abrasion and corrosion for long-lasting performance. Thanks to its broad operating temperature range of -25°C to +85°C, the switch is suitable for use in demanding environments. The silver contacts ensure good electrical conductivity and resistance to corrosion, giving you a reliable electrical connection.

Features & Benefits

• Robust mechanical lifespan of 15 million operations for long-lasting performance
• Compact dimensions of 42 (length) x 42 (width) x 82mm (depth) to save space
• IP67 (ingress protection) rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes

Applications

• Railway signalling equipment
• Apertures and doors
• Construction machinery
• Cranes and elevators

Is this limit switch adjustable?

Yes. The adjustable actuator is mounted on a rubber roller that allows you to easily shorten or extend its length to match your system requirements.

Approvals

UL/ UL listed for Canada
