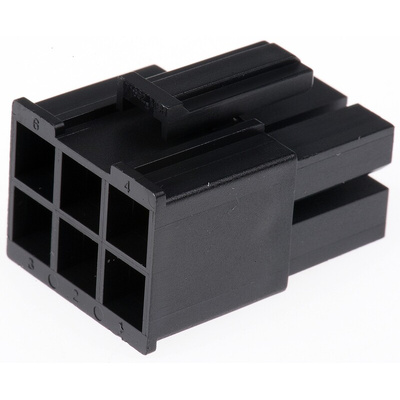

171692-0106, Molex, Mega-Fit Male Connector Housing, 5.7mm Pitch, 6 Way, 2 Row, Корпус разъема

Mega-Fit UL 94 V-0 Receptacle Housings - 171692 Series

These Mega-Fit 5.70 mm pitch Receptacle Housings from Molex have a positive locking feature which gives an audible click when fully mated to the header. The terminals are fully isolated in the Mega-Fit Receptacle Housing for protection during handling and mating. The body material used for these Mega-Fit Receptacle Housings has a flammability Rating of UL 94 V-0.
For the Mega-Fit Crimp Terminal Contact see stock number 797-5920 .
For mating Mega-Fit Headers see stock number 797-5908 typical.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.

Mega-Fit Brochure

Mega-Fit Receptacle Housing 2-12 Circuit UL 94 V-0 - Drawing

Mega-Fit Receptacle Housing, Dual Row, 6 Circuit, UL 94 V-0 - Datasheet

Datasheet

Line Drawing
