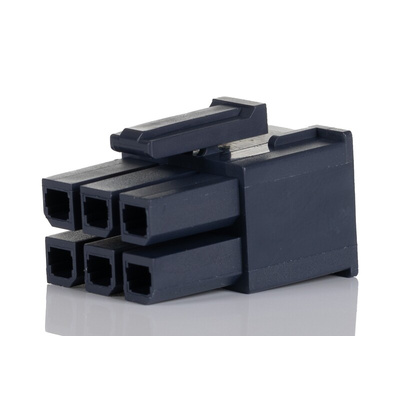

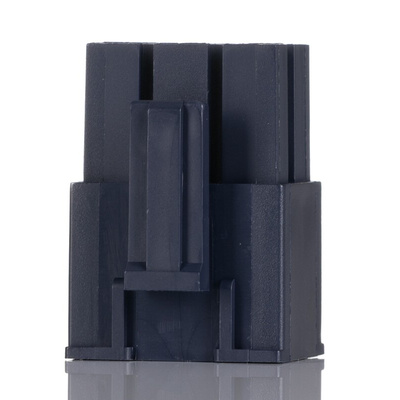

170001-0106, Molex, Mega-Fit Male Connector Housing, 5.7mm Pitch, 6 Way, 2 Row, Корпус разъема

Mega-Fit Glow-Wire Compliant Receptacle Housings - 170001 Series

These Mega-Fit 5.70 mm pitch Glow-Wire Compliant Receptacle Housings from Molex have a positive locking feature which gives an audible click when fully mated to the header. The terminals are fully isolated in the Mega-Fit Glow-Wire Compliant Receptacle Housing for protection during handling and mating.
For the Mega-Fit Crimp Terminal Contact see stock number 797-5920 .
For mating Mega-Fit Glow-Wire Compliant Headers see stock number 797-5908 typical.

Molex Connector Housing, 23A Current Rating, PCB Mounting - Mega-Fit Series - 170001-0106

Looking for a high-powered terminal interface? Try this Molex connector housing. Thanks to a power density of 23A per contact, you can rely on it to provide optimum current density in demanding settings. This powerhouse is backed by crimp contacts for long-lasting and durable terminal-to-wire connections. Simply listen for a click when mating it to a compatible part, and you can rest assured you've hooked it up securely.

• 6 independent contact points to make multiple electrical connections
• Tight pitch of 5.7mm maximises board-packing density
• Fully isolated for protection and safety during handling and connection
• Flame-retardant, so won't catch alight in the event of a fire

Applications

• Automotive manufacturing
• Industrial lighting
• Telecommunication centres
• Commercial appliances

Can I re-use this connector housing?

As the component has electrical durability of up to 30 mating cycles, you can re-connect it multiple times.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.

Mega-Fit Brochure

Mega-Fit Receptacle Housing 2-12 Circuit Glow-Wire Compatible - Drawing

Mega-Fit Receptacle Housing, Dual Row, 6 Circuit, Glow-Wire Compliant - Datasheet

Datasheet

Line Drawing
