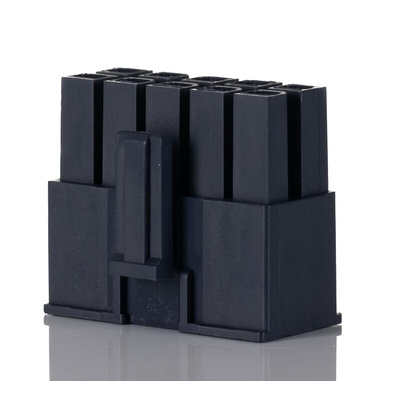

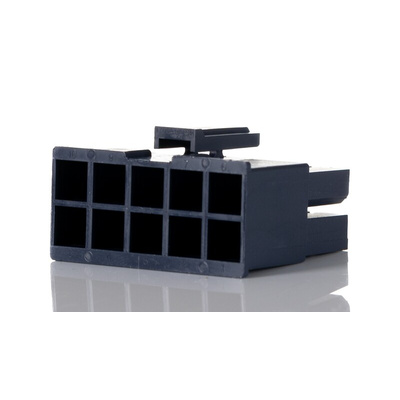

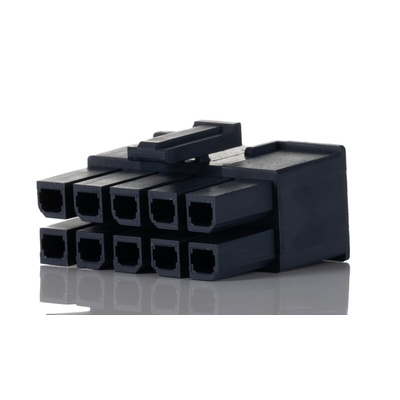

170001-0110, Molex, Mega-Fit Male Connector Housing, 5.7mm Pitch, 10 Way, 2 Row, Корпус разъема

Mega-Fit Glow-Wire Compliant Receptacle Housings - 170001 Series

These Mega-Fit 5.70 mm pitch Glow-Wire Compliant Receptacle Housings from Molex have a positive locking feature which gives an audible click when fully mated to the header. The terminals are fully isolated in the Mega-Fit Glow-Wire Compliant Receptacle Housing for protection during handling and mating.
For the Mega-Fit Crimp Terminal Contact see stock number 797-5920 .
For mating Mega-Fit Glow-Wire Compliant Headers see stock number 797-5908 typical.

Molex Connector Housing, Nylon, 4.72g Weight - Mega-Fit Series - 170001-0110

Take the strain out of hooking up multiple power terminals with this Molex connector housing. Its latching design cuts down on operator fatigue, as it needs minimal mating and disconnection force. The receptacle also hangs on tight to a compatible header, so you get a long-lasting and reliable join. With 10 circuits, it offers maximum power density, while a tight pitch of 5.7mm lets you make the most of the space on your PCB.

• Isolated for protection against electric shocks during termination
• Flame-retardant, so won't catch alight in the event of a fire
• Broad operating temperature range between -40°C and +120°C makes it compatible with harsh environments

Applications

• Network hubs
• Automotive manufacturing
• HVAC equipment
• Power distribution facilities

How do I know if I've correctly mated this connector?

An audible click lets you conveniently know when the receptacle is correctly mated.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.
