172063-0311, Molex Mega-Fit Series Female Crimp Terminal, 16AWG Min, 14AWG Max, Контакты

Molex Crimp Terminal, \t5mΩ Contact Resistance, 1.5mm² Maximum Wire Size - Mega-Fit Series - 172063-0311

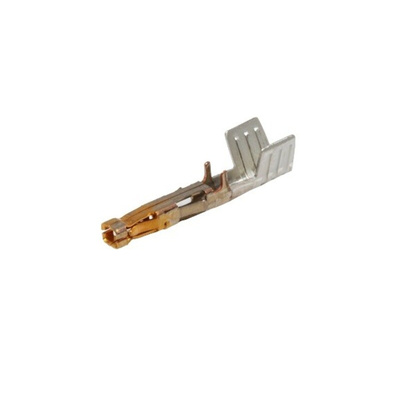

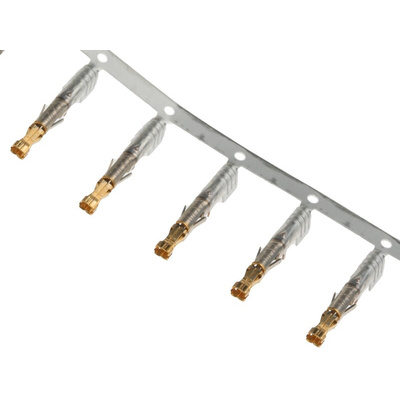

Create a durable power or wire-to-board connection using this crimp terminal from Molex. It's made from a copper alloy, so it's highly conductive, durable and easy to crimp. A combination of gold and matte-tin plating improves its mechanical strength and corrosion resistance for long-lasting use. Ribbed arms ensure a secure wire grip and tangs keep the terminal locked into connector housings. Six contact points ensure a reliable connection.

Features & Benefits

• Wide operating temperature range between -40°C and +105°C for use in demanding environments
• Accepts wire sizes between 1 and 1.5mm² for flexibility
• Suitable for a maximum voltage of 600V for use with high-power machinery

Applications

• Automotive electronics
• HVAC equipment
• Industrial automation
• Network servers and switches

Can I use this crimp terminal for hot plugging applications?

Yes, the crimp terminal has a split-box design to minimise arcing when you pull it in and out of connectors. This makes it suitable for hot plugging.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.

Mega-Fit Brochure

Mega-Fit Female Crimp Terminal, 15 micro inch Gold (Au) Plating - Drawing

172063-0311 Datasheet

Application Sheet - Mega-Fit

Product Specification Sheet - MEGA-FIT
