IM1-22EX-R, Turck 2 Channel Galvanic Barrier, Isolating Amplifier, NAMUR Sensor, Switch Input, Relay Output, ATEX, IECEx

IM1 Isolating Switching Amplifier

Professional range of galvanically isolated switching amplifiers for the transmission of binary switching signals. This series is environmentally versatile and comes with a variety of approvals, meaning the IM signal conditioning series can be installed in a comprehensive range of applications

Features of the IM1 Isolating Switching Amplifier Range
Intrinsically safe input circuits in accordance to ATEX II (1) GD, II 3 G
NAMUR sensor & mechanical switch connections
Supports a N/O relay output per channel
Input circuit monitoring function for detection of short circuit and/or wire-break for each channel, this feature can be switched on/off
Detachable terminal blocks
LED indication of operational readiness

Note

When using mechanical contacts, wire-break & short circuit monitoring must be switched off or wired with resistors

Standards

ATEX 2553, ATEX 552968C, UL, KOSHA, IECEx, NEPSI, FM

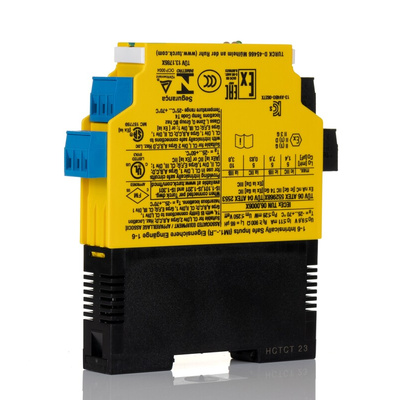

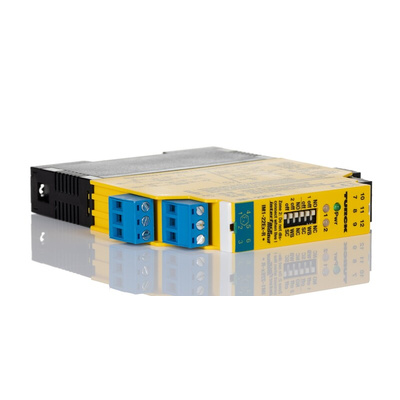

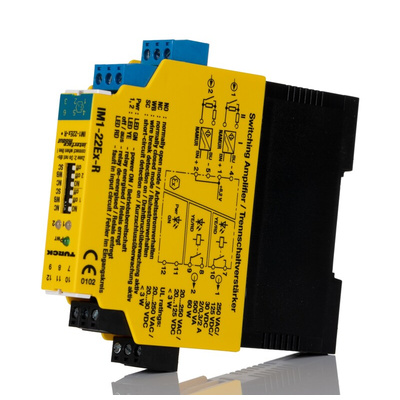

Turck Galvanic Barrier, Isolating Switching Amplifier Type, 2 x Relay Outputs - IM1 Series - IM1-22EX-R

For the safe transmission of your control signals, make the switch to this Turck galvanic barrier. It's an isolating switching amplifier that prevents electrical conduction between an 8.2V DC NAMUR sensor and a 250V AC output without affecting the signal. It has two relay outputs, so you can make or break multiple circuits as needed. Sudden voltage surges are no problem, as this product has been isolation-tested up to 2.5kV. Optional wire-break and short-circuit monitoring give additional peace of mind.

Features & Benefits

• Broad -25°C to +70°C operating temperature range is well-suited to harsh working areas
• Maximum power consumption of 3W shows it's an energy-saving component
• Built-in LED indicators to monitor the status and operation of your setup
• Operating voltage ranges of 20 to 250V AC and 20 to 125V DC for use with universal supply sources

Applications

• Medical equipment
• Power supply design
• Automotive industry
• Renewable energy installations

Can I use this unit to control DC circuits?

Yes, you can. For flexibility, this product lets you activate or de-activate a connected DC circuit with a rating of up to 30V.

Turck Banner DIN Rail Mounting

Datasheet

Manual - IM1-22EX-R
