IM33-22EX-HI/24VDC, Turck 2 Channel Galvanic Barrier, HART Isolating Transducer, Current Input, Current Output, ATEX, IECEx

Isolating Transducer

Professional range of galvanically isolated Isolating transducers for the transmission of a unattenuated output signal to the non-Ex area. This series is environmentally versatile and comes with a variety of approvals, meaning the IM signal conditioning series can be installed in a comprehensive range of applications

Features of the IM Isolating Transducer Series
Suitable for Zone 2 installation
Safety Integrity Level (SIL) 2
Removable screw-termination terminal blocks, with 2mm test box
Complete galvanic isolation
4 - 20mA input & output circuits
Supports HART communication and 2-wire active & passive 3-wire transmitters
Connection for HART handheld unit supported

Standards

ATEX, IECEx, FM, UL, GOST

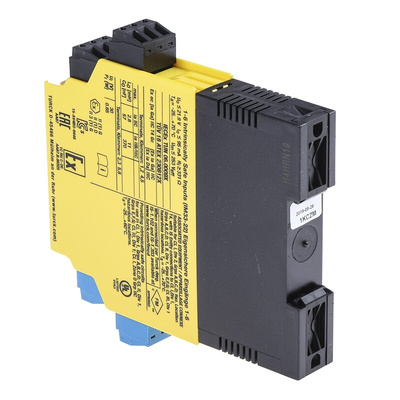

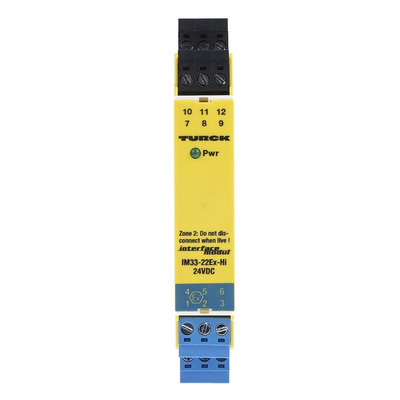

Turck Galvanic Barrier, ATEX-Approved, Isolating Transducer Type - IM Series - IM33-22EX-HI/24VDC

For safe signal processing and transmission in hazardous work areas, choose this galvanic barrier from Turck. It's an isolating transducer that does double duty, building a 2.5kV barrier between the input and output to prevent surges while also converting analogue signals to measurable electrical values. Its innovative 2-channel HART interface enables bi-directional communication, so you can transmit and receive data simultaneously. The component's polycarbonate/ABS housing provides the impact resistance it needs for use in rugged settings. It weighs just 146g, so it won't put pressure on your mounting surface, whether it's a DIN rail or the equipment panel.

Features & Benefits

• Compact dimensions of 110 (H) x 110 (W) x 18mm (D) make it a space-efficient choice for tight setups
• MTTF of 125 years assures you of long-lasting performance
• Screw terminals simplify wire connections
• Safe to use in demanding conditions, thanks to an operating temperature range of -25°C to +70°C

Applications

• Medical equipment
• Industrial automaton
• Power distribution plants

Is this component flame-resistant?

Yes, it stops burning in 10 seconds or less in the event of a fire, so it helps prevent the spread of flames.

Turck Banner DIN Rail Mounting

IM33-22EX-HI-24VDC

HART isolating transducers 2-channels

Manual - IM33 Series
