IM35-22EX-HI/24VDC, Turck 2 Channel Galvanic Barrier, Analogue Input Isolator, Current Input, Current Output, ATEX, IECEx

Analogue Signal Isolator

Professional range of galvanically isolated Analogue Signal Isolators which support HART communication. This series is environmentally versatile and comes with a variety of approvals, meaning the IM signal conditioning series can be installed in a comprehensive range of applications

Features of the IM Analogue Signal Isolator Series
Suitable for installation in Zone 2 environments
HART Communication allows for power supply of intelligent actuators
Removable screw-termination terminal blocks, with 2mm test box
Safety Integrity Level (SIL) 2
4 - 20mA circuits, with an intrinsically safe output
Complete galvanic isolation

Standards

ATEX, IECEx, FM, GOST

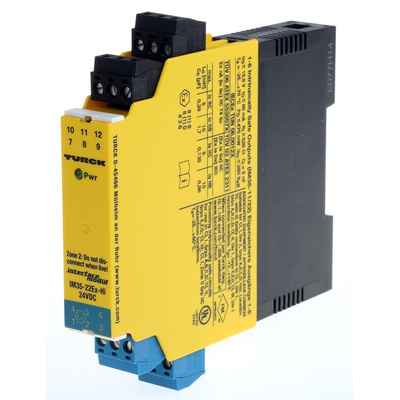

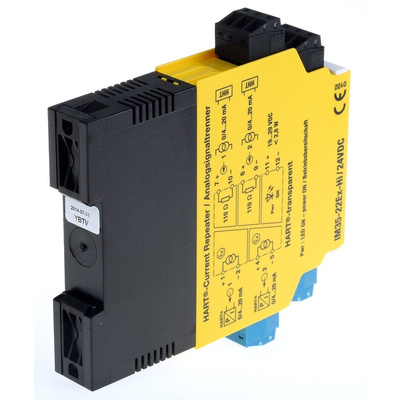

Turck Galvanic Barrier, Analogue Signal Isolator Type, 2 x Channels - IM35-22EX-HI/24VDC

When you want to cut the crosstalk in your circuitry, wire up this Turck galvanic barrier. The device has built-in isolation that limits noise and interference between your input and output channels, so your signals stay crisp and clear. It does this while keeping the current constant in the range of 0 to 20mA, preventing loss of energy to connected components. A test voltage of 2.5kV assures you this product holds its own against sudden electrical surges. Thanks to its snap-on design, the unit is a breeze to install on a standard 35mm DIN rail.

Features & Benefits

• Transmits digital signals bidirectionally, so it's a versatile piece of kit
• Slim size of 110 (L) x 18 (W) x 110mm (D) to save space on your rail
• Weighs only 163g to avoid putting pressure on your setup
• IP20 rating, indicating it's touch-proof for safe handling

Applications

• Industrial automation and control
• Measuring equipment
• Medical technology

What's the operating temperature range of this galvanic barrier?

This hardy device withstands temperatures between -25°C and +70°C to function reliably in challenging environments.
