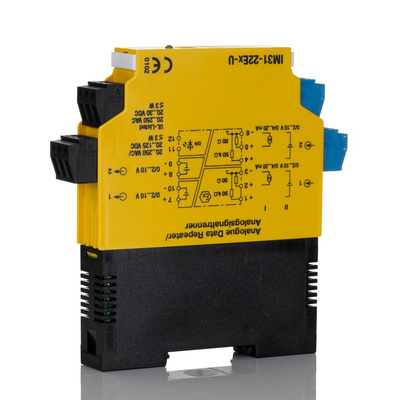

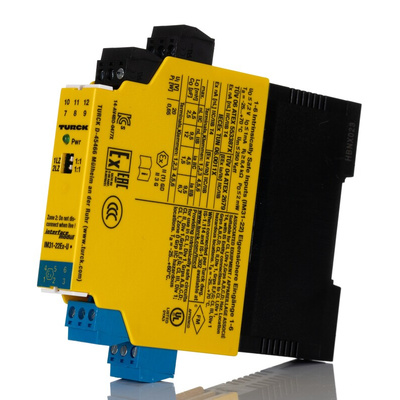

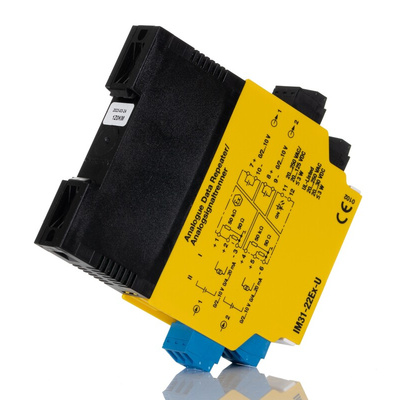

IM31-22EX-U, Turck 2 Channel Galvanic Barrier, Analogue Input Isolator, Current, Voltage Input, Voltage Output, ATEX, IECEx

Analogue Signal Transmitter

Professional range of galvanically isolated Analogue Signal Transmitters. Supports the transmission of analogue signals from an Ex zone to a non-Ex Zone. This series is environmentally versatile and comes with a variety of approvals, meaning the IM signal conditioning series can be installed in a comprehensive range of applications

Features of the IM Analogue Signal Isolator Series
Suitable for installation in Zone 2 environments
Complete Galvanic isolation
Supports 2 - 10V or 4 - 20mA inputs & 2x 4 - 20mA outputs
Short circuit-proof outputs
LED Indication of operational status for quick reference

Standards

ATEX, IECEx, CSA, FM, UL, TIIS, GOST

Turck Galvanic Barrier, Analogue Signal Isolator Type, Reverse Polarity Protection - IM31-22EX-U

Looking for an easy way to limit crosstalk in your electrical system? Mute the volume with this Turck galvanic barrier. Thanks to built-in isolation, it keeps your signals crystal-clear by removing any noise and interference between the input and output channels. To prevent energy loss to connected equipment, the voltage remains constant in the range of 0 to 10V. A broad operating temperature scope of -25°C to +70°C means the device holds its own in demanding environments.

Features & Benefits

• Light weight of 136g to limit the strain on your setup
• IP20-rated, demonstrating it's finger-safe and protected against objects larger than 12mm
• Mountable on a panel or 35mm DIN rail for flexible use

Applications

• Industrial control networks
• Power distribution
• Digital data collection
• IT infrastructure

Can this galvanic barrier withstand voltage surges?

Yes. This product is tested up to 2.5kV, holding off damage caused by sudden voltage surges.

What are the dimensions of this device?

It measures 104 (L) x 18 (W) x 110mm (D) to maximise available space on busy rails.

Turck Banner DIN Rail Mounting

IM31-22EX-U

Analogue signal transmitters 2-channels

Instruction Sheet - IM31-22EX-U
