RS PRO Counter Counter, 6 Digit, 20kHz, 230 V ac, Счетчик

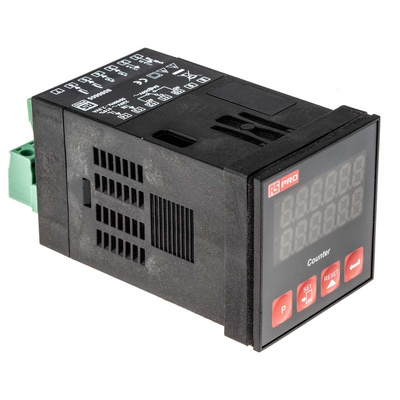

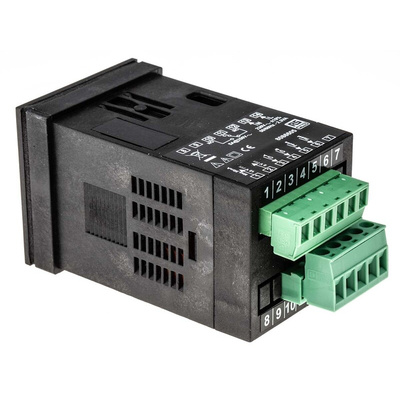

RS PRO 6 Digit, LED, Digital Counter, 20 kHz, 230 V AC

Need a reliable digital counter for your business? This 6-digit LED digital counter from RS PRO is suitable for a wide range of counting applications, including frequency counters and electronic device timers.

Counters are used in electronics and automated systems to measure frequency and time, for example. This model has a clear 6-digit LED screen to display its calculations and an easy-to-use button configuration. The panel mount on the back improves the counter's lifetime by reducing external strain on the electrical connections. It's also very simple to install.

This digital counter can count both incrementally and decrementally, meaning it can count figures forwards as well as backwards. It's constructed from robust materials and is well-suited to quality control roller systems, measurement automation and machine processing of glass, plastic and sheet iron, among other materials. Part of the tried and tested RS PRO range, this product meets European CE safety standards.

Features and Benefits

• Digital counter
• Supply voltage of 230 V AC
• Pulse count mode in seconds
• Transistor input type
• Mechanical meter type
• LED display
• Six digits (digit height of 8 mm)
• Flying lead connection type
• Automatic and manual reset methods
• Panel mounting
• Bi-directional counting
• Relay output
• Maximum count frequency of 20 kHz
• Measurement range of 0 to 99.99
• Depth of 95 mm
• Cutout size 48 x 48 mm
• Weight of 210 g
• Minimum operating temperature of 0°C
• Maximum operating temperature of +50°C
• CE and GOST-R approved as meeting European and Russian safety standards respectively

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Installation Instruction Manual

RS PRO Datasheet
